Description
Brand - DODGE
Item Number - 423110 DODGE - BRG22320KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22320KC3
Shaft Size (inch) - 3.4375
Housing - 620
Bearing Number - 22320K
Approximate Weight (lbs) - 28

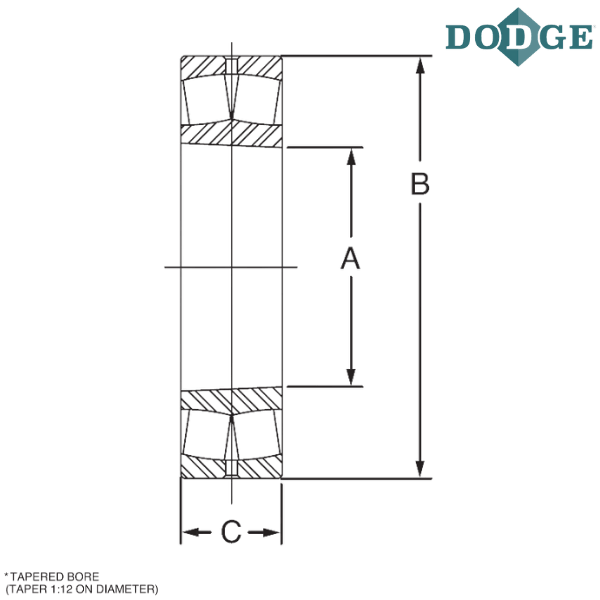

A (inch) - 3.937
A (mm) - 100
Outer Diameter (B) inch - 8.4646
Outer Diameter (B) mm - 215
C (inch) - 2.874
C (mm) - 73
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
