Description
Brand - DODGE
Item Number - 423102 DODGE - BRG22311KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22311KC3
Shaft Size (inch) - 1.9375
Housing - 611
Bearing Number - 22311K
Approximate Weight (lbs) - 5.1

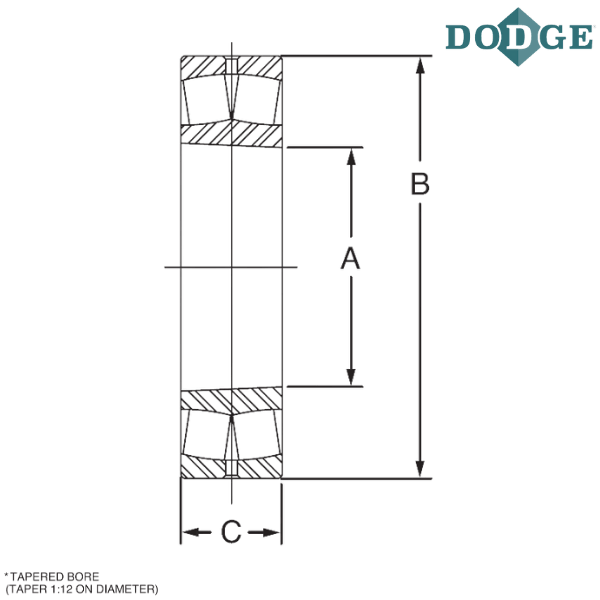

A (inch) - 2.1654
A (mm) - 55
Outer Diameter (B) inch - 4.7244
Outer Diameter (B) mm - 120
C (inch) - 1.6929
C (mm) - 43
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
