Description
Brand - DODGE
Item Number - 422844 DODGE - BRG23264K.C3
Category - USDAF 23000, 23100, 23200 Spherical Roller Bearings
Description - BRG23264K.C3
Housing - 3264
Bearing Number - 23264K
Approximate Weight (kg) - 519

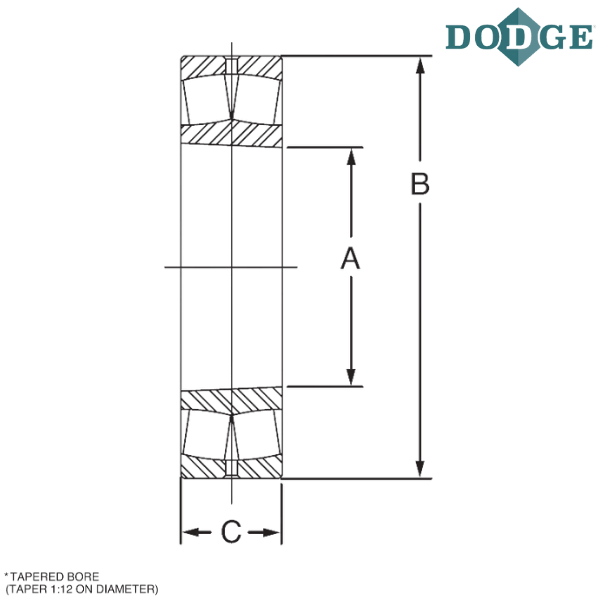

A (inch) - 12.5984
A (mm) - 320
Outer Diameter (B) inch - 22.8346
Outer Diameter (B) mm - 580
C (inch) - 8.189
C (mm) - 208
Notes :
BRG - Roller Bearing
C3 - Bearing clearance
** Images are for representation purposes only
