Description
Brand - DODGE
Item Number - 422597 DODGE - CYL-LT10-100
Category - Sleeve Bearings - SOLIDLUBE LT Cylindrical Units (LT1000)
Shaft Size (inch) - 1
Description - CYL-LT10-100
Weight (lbs) - 1.5
A (inch) - 1.0625
B (inch) - 0.84375

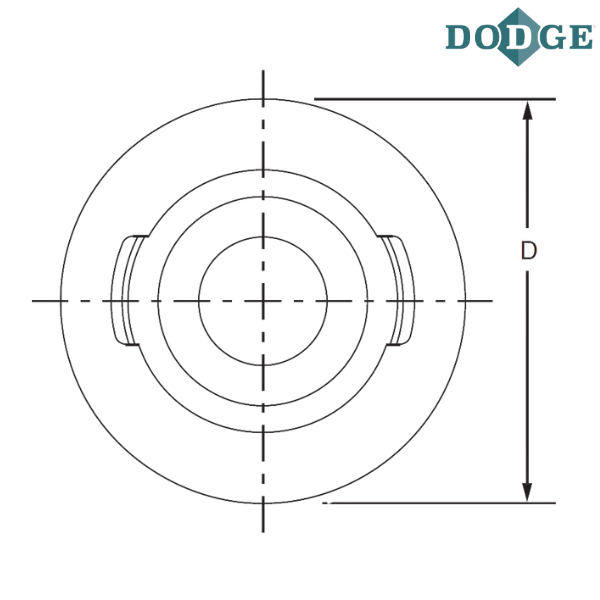

Insert Outer Diameter (D) inch - 3.125 (+.000 to -.002)
L (inch) - 1.5625
Notes :
CYL - Cylindrical
LT10 - SOLIDLUBE LT 1000 Series
100 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

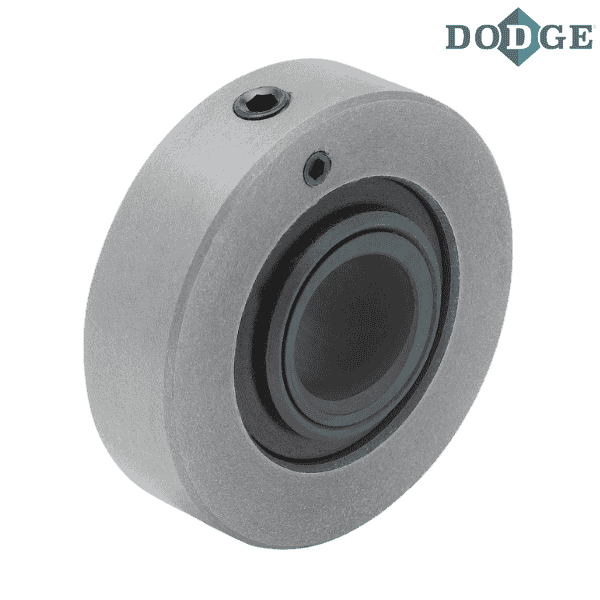

** Images are for representation purposes only
