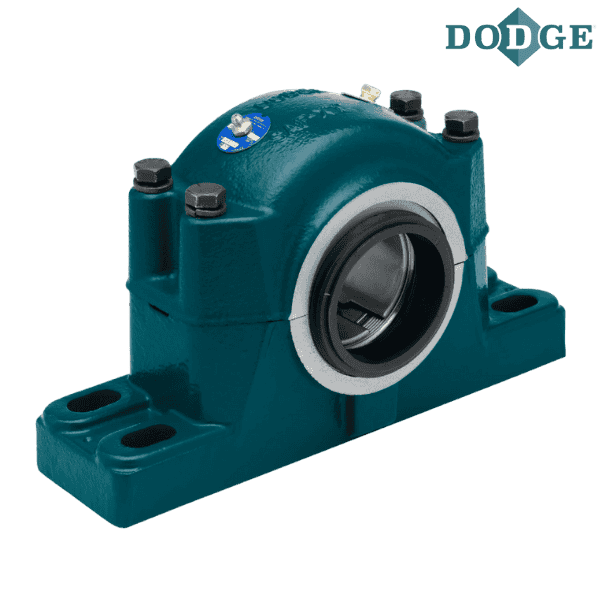

422572 DODGE - P4B056-SFXT-1008TT SAF-XT

Brand - DODGE
Item Number - 422572 DODGE - P4B056-SFXT-1008TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 422572
Description - P4B056-SFXT-1008TT SAF-XT
Shaft Size (inch) - 10.5
Complete Pillow Block Designation SAF-XT - 2356
Weight (lbs) - 707

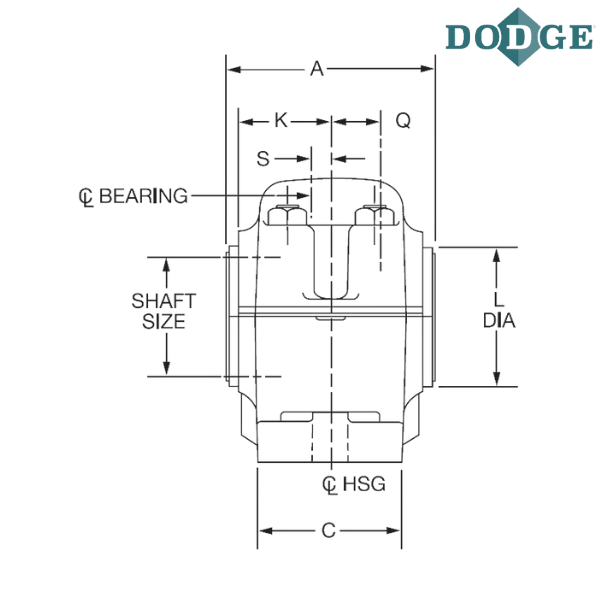

Dimension of A With Triple-Tect Seal (Std.) inch - 13.77
Dimension of A With LER Seal (Optional) inch - 12.5
Dimension of A With Auxiliary Seal (Optional) inch - 15.7

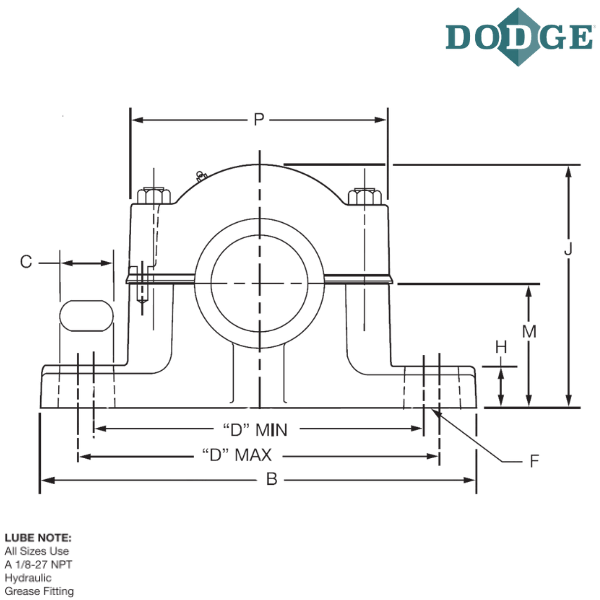

Overall Length (B) inch - 32
C (inch) - 11.25
Bolt to Bolt Minimum Distance (D min) inch - 25.75
Bolt to Bolt Maximum Distance (D max) inch - 27.75

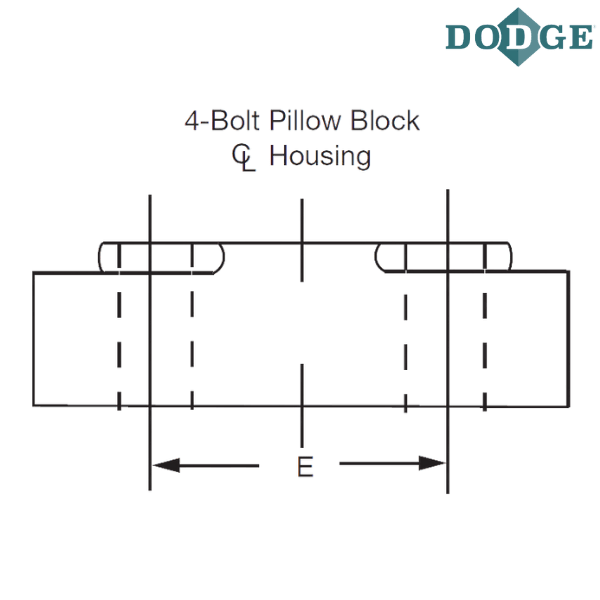

E (inch) - 7.25
F-Bolt Diameter (inch) - 1.75
G (inch) - 2.88
H (inch) - 4
Overall Height (J) inch - 19.88
K (inch) - 6.16
L (inch) ** - 10.38
Base to Center Height (M) inch - 9.5
P (inch) - 20.75
Q (inch) *** - 3.81
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.88
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.88

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

**** Images are for representation purposes only
