Description
Brand - DODGE
Item Number - 422543 DODGE - BRG23052K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG23052K.C3
Shaft Size (S-1) inch - 9.4375, 9.5
Housing - 052
Bearing Number - 23052K
Approximate Weight (lbs) - 106

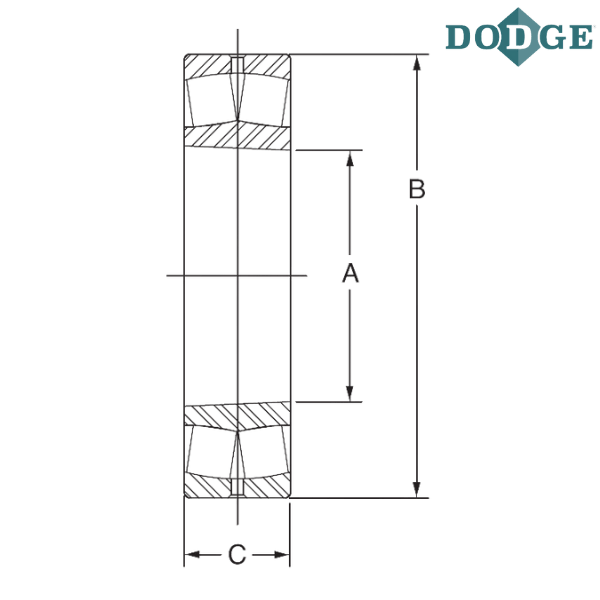

Inner Diameter (A) inch - 10.2362
Inner Diameter (A) mm - 260
Outer Diameter (B) inch - 15.748
Outer Diameter (B) mm - 400
Width (C) inch - 4.0945
Width (C) mm - 104
Notes :
BRG - Roller Bearing
230 - 23000 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
