Description
Brand - DODGE
Item Number - 422538 DODGE - SNP052-908
Category - USAF 500 Adaptor Assembly (SNW)
Shaft Diameter (V) inch - 9.5
Housing - 052
SNW/SNP Number - SNP052-908
Approximate Weight (lbs) - 40
Outer Diameter (L) inch - 12.19
Maximum F (inch) - 1.8
Width (M) inch - 6.02
Notes :

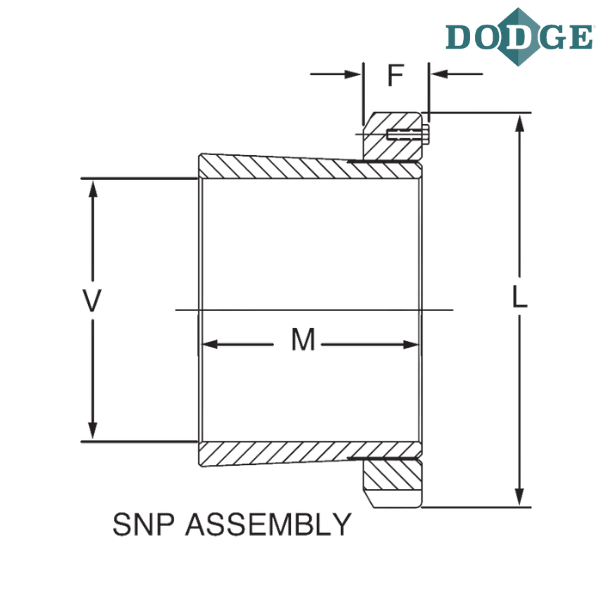

SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
052 - Bearing Size
908 - Adapter Bore Size
** Images are for representation purposes only
