Description
Brand - DODGE
Item Number - 422064 DODGE - BRG22240K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22240K.C3
Shaft Size (S-1) inch - 7.1875
Housing - 540
Bearing Number - 22240K
Approximate Weight (lbs) - 94.1

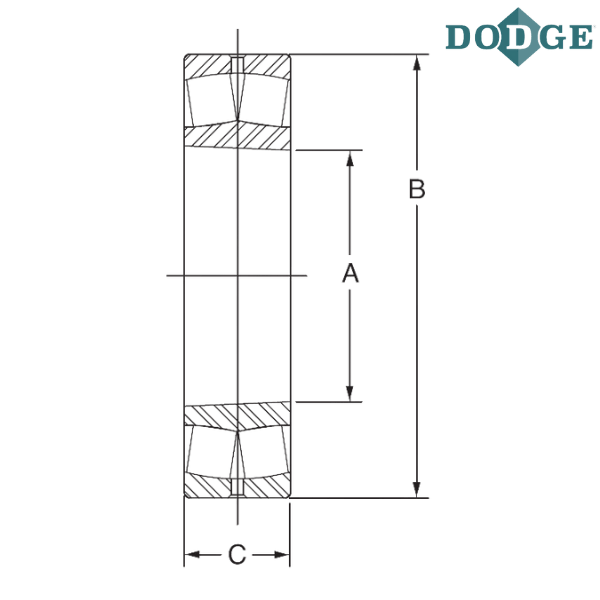

Inner Diameter (A) inch - 7.874
Inner Diameter (A) mm - 200
Outer Diameter (B) inch - 14.1732
Outer Diameter (B) mm - 360
Width (C) inch - 3.8583
Width (C) mm - 98
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
