Description
Brand - DODGE
Item Number - 422035 DODGE - BRG22328KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22328KC3
Shaft Size (inch) - 4.9375
Housing - 628
Bearing Number - 22328K
Approximate Weight (lbs) - 75.4

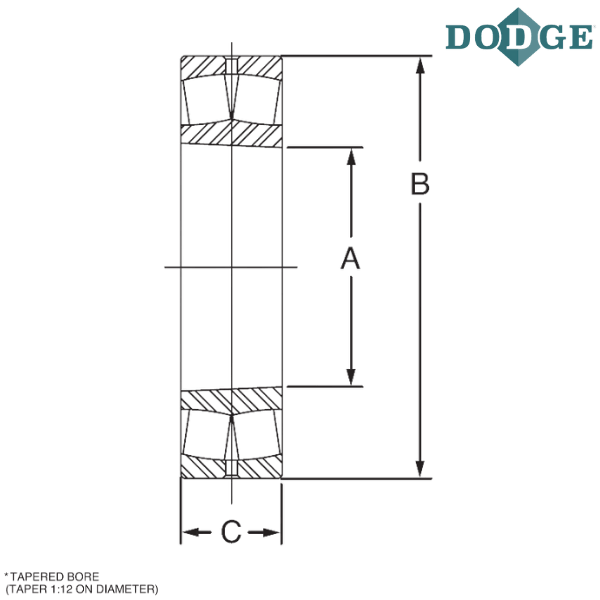

A (inch) - 5.5118
A (mm) - 140
Outer Diameter (B) inch - 11.811
Outer Diameter (B) mm - 300
C (inch) - 4.0157
C (mm) - 102
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
