Description
Brand - DODGE
Item Number - 422031 DODGE - BRG23048K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG23048K.C3
Shaft Size (S-1) inch - 8.4375, 8.5, 8.9.75, 9.0
Housing - 048
Bearing Number - 23048K
Approximate Weight (lbs) - 73.4

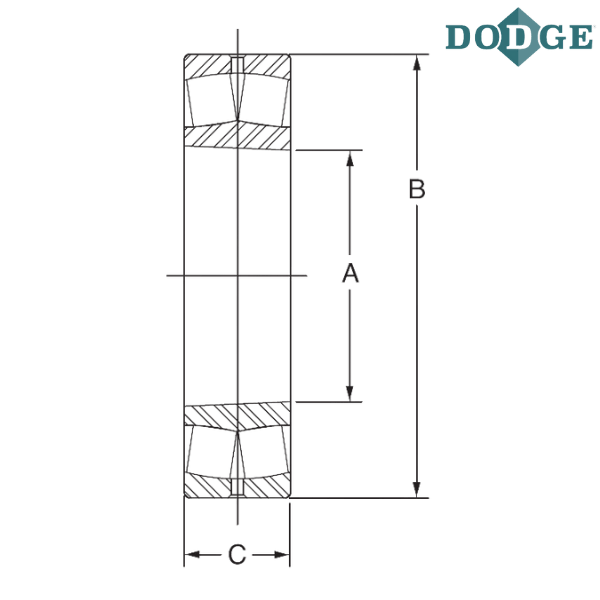

Inner Diameter (A) inch - 9.4488
Inner Diameter (A) mm - 240
Outer Diameter (B) inch - 14.1732
Outer Diameter (B) mm - 360
Width (C) inch - 3.622
Width (C) mm - 92
Notes :
BRG - Roller Bearing
230 - 23000 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
