Description
Brand - DODGE
Item Number - 422029 DODGE - BRG22244K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22244K.C3
Shaft Size (S-1) inch - 7.5, 7.9375, 8.0
Housings - 544S, 544
Bearing Number - 22244K
Approximate Weight (lbs) - 129

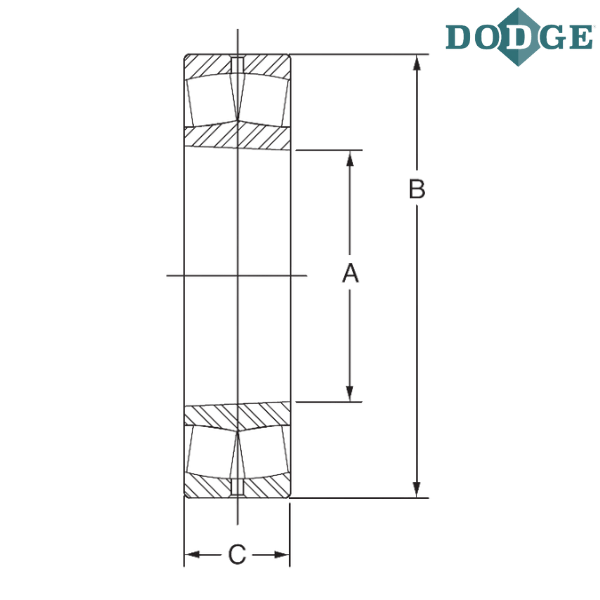

Inner Diameter (A) inch - 8.6614
Inner Diameter (A) mm - 220
Outer Diameter (B) inch - 14.748
Outer Diameter (B) mm - 400
Width (C) inch - 4.252
Width (C) mm - 108
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
