Description
Brand - DODGE
Item Number - 422017 DODGE - BRG22228K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22228K.C3
Shaft Size (S-1) inch - 4.9375, 5.0
Housing - 528
Bearing Number - 22228K
Approximate Weight (lbs) - 29.5

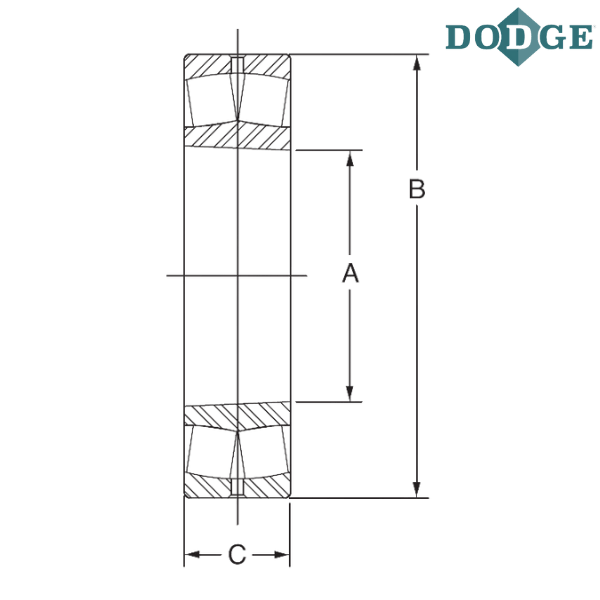

Inner Diameter (A) inch - 5.5118
Inner Diameter (A) mm - 140
Outer Diameter (B) inch - 9.8425
Outer Diameter (B) mm - 250
Width (C) inch - 2.6772
Width (C) mm - 68
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
