Description
Brand - DODGE
Item Number - 422013 DODGE - BRG22224K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22224K.C3
Shaft Size (S-1) inch - 4.1875
Housing - 524
Bearing Number - 22224K
Approximate Weight (lbs) - 18.7

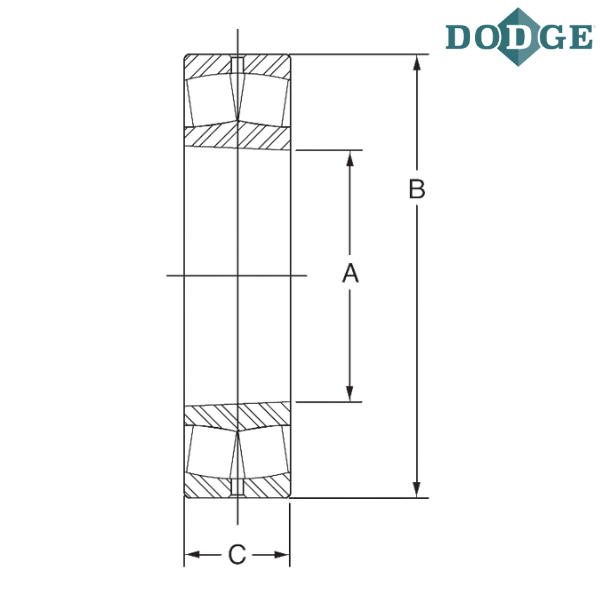

Inner Diameter (A) inch - 4.7244
Inner Diameter (A) mm - 120
Outer Diameter (B) inch - 8.4646
Outer Diameter (B) mm - 215
Width (C) inch - 2.2865
Width (C) mm - 58
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

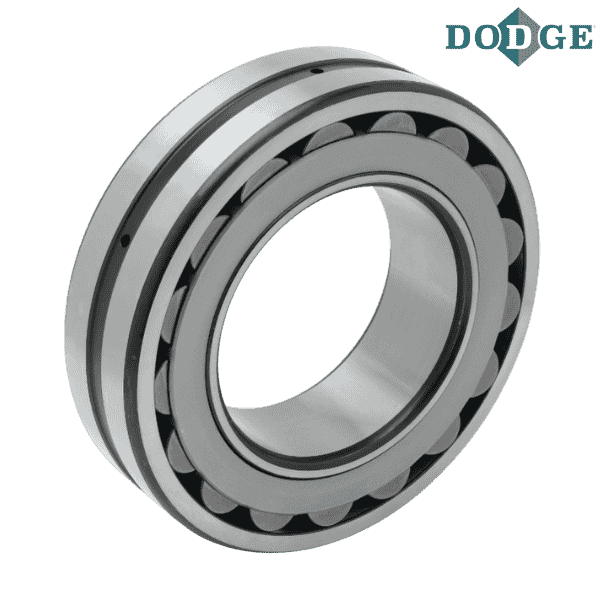

** Images are for representation purposes only
