Description
Brand - DODGE
Item Number - 422005 DODGE - BRG22217K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22217K.C3
Shaft Size (S-1) inch - 2.9375, 3.0
Housing - 517
Bearing Number - 22217K
Approximate Weight (lbs) - 5.5

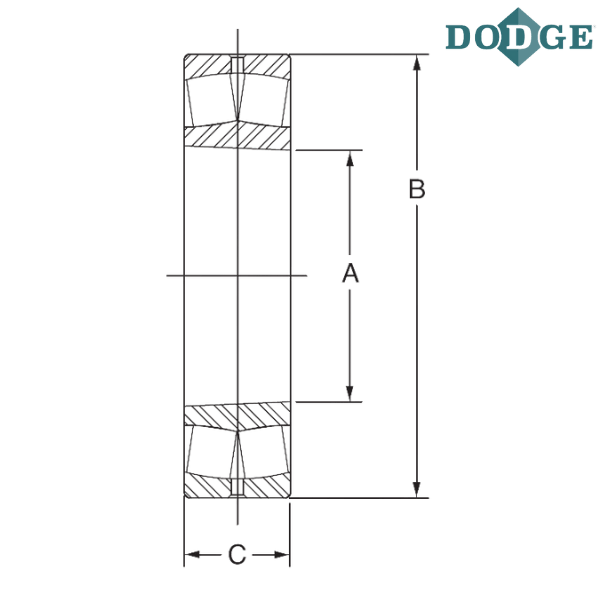

Inner Diameter (A) inch - 3.3465
Inner Diameter (A) mm - 85
Outer Diameter (B) inch - 5.9055
Outer Diameter (B) mm - 150
Width (C) inch - 1.4173
Width (C) mm - 36
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
