Description
Brand - DODGE
Item Number - 422001 DODGE - BRG22215K.C3
Category - USAF 22200K and 23000K Spherical Roller Bearings
Description - BRG22215K.C3
Shaft Size (S-1) inch - 2.4375, 2.5
Housing - 515
Bearing Number - 22215K
Approximate Weight (lbs) - 3.6

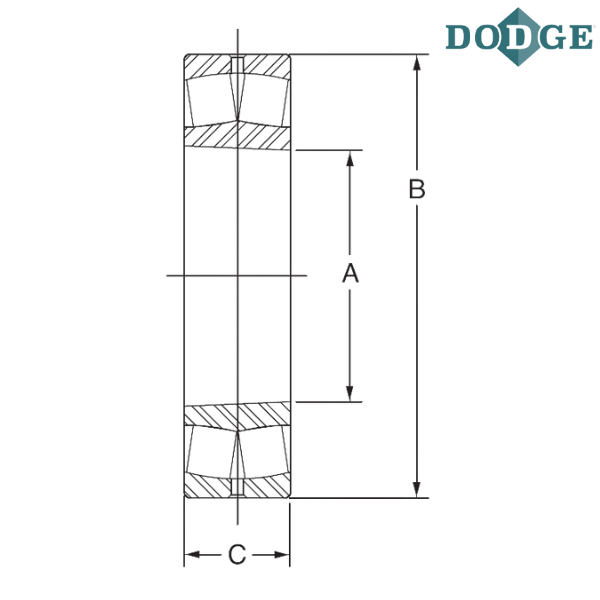

Inner Diameter (A) inch - 2.9528
Inner Diameter (A) mm - 75
Outer Diameter (B) inch - 5.1181
Outer Diameter (B) mm - 130
Width (C) inch - 1.2205
Width (C) mm - 31
Notes :
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
