Description
Brand - DODGE
Item Number - 421370 DODGE - BRG-UN2-080
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22218
Shaft Size (mm) - 80
Part Name - BRG-UN2-080
Approximate Weight (kg) - 4.54

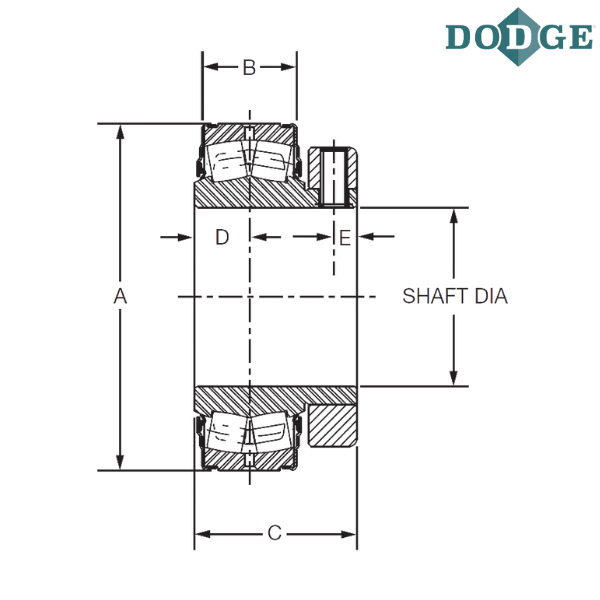

Overall Length (A) mm - 160
B (mm) - 41.3
Thickness (C) mm - 73
D (mm) - 24.1
E (mm) - 11.2
Notes :
UN2 - UNISPHERE II
** Images are for representation purposes only
