Description
Brand - DODGE
Item Number - 421368 DODGE - BRG-UN2-070
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22215
Shaft Size (mm) - 70
Part Name - BRG-UN2-070
Approximate Weight (kg) - 2.37

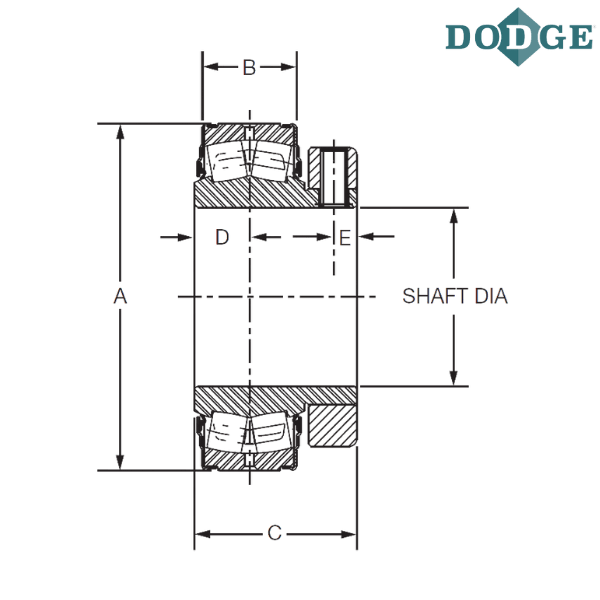

Overall Length (A) mm - 130
B (mm) - 32.3
Thickness (C) mm - 62
D (mm) - 20.2
E (mm) - 11.2
Notes :
UN2 - UNISPHERE II

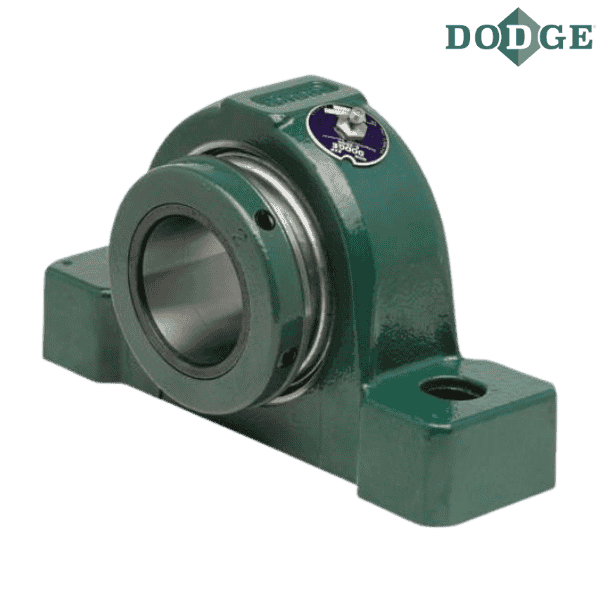

** Images are for representation purposes only
