Description
Brand - DODGE

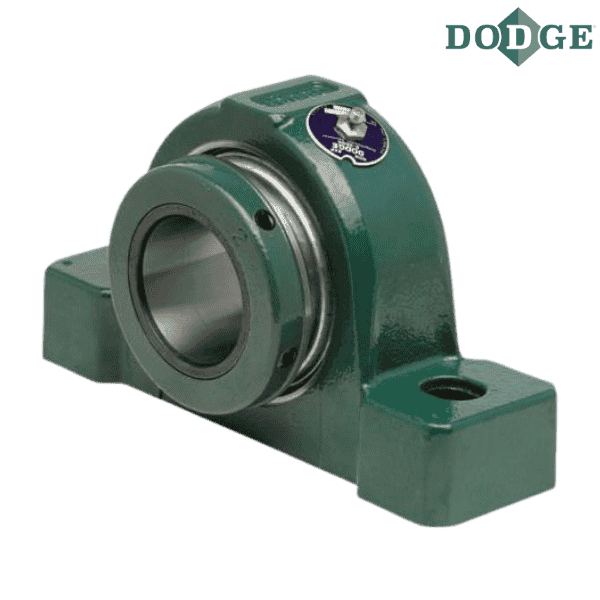

Item Number - 421367 DODGE - BRG-UN2-065
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22213
Shaft Size (mm) - 65
Part Name - BRG-UN2-065
Approximate Weight (kg) - 1.74

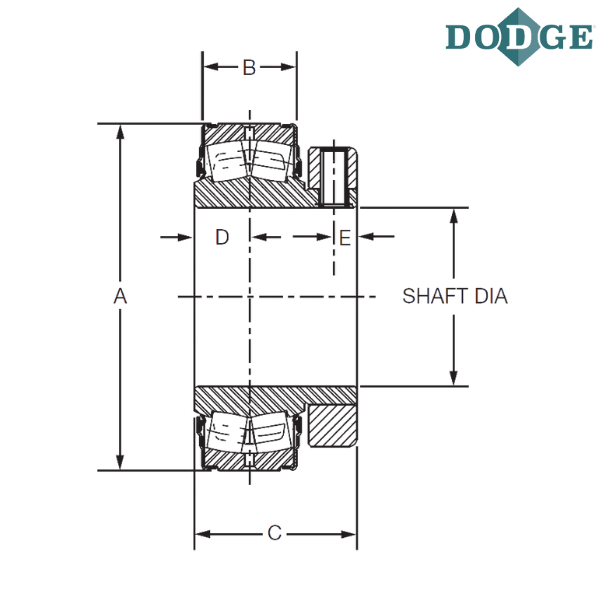

Overall Length (A) mm - 120
B (mm) - 32.2
Thickness (C) mm - 56
D (mm) - 19
E (mm) - 8.05
Notes :
UN2 - UNISPHERE II
** Images are for representation purposes only
