Description
Brand - DODGE
Item Number - 421366 DODGE - BRG-UN2-060
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22213
Shaft Size (mm) - 60
Part Name - BRG-UN2-060
Approximate Weight (kg) - 1.95

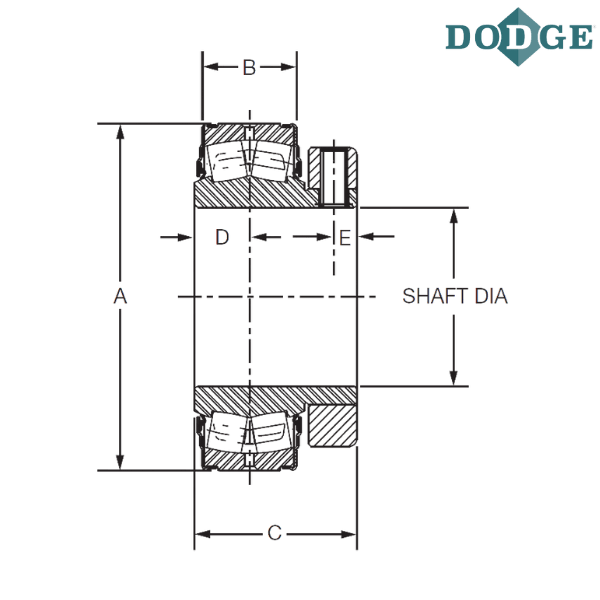

Overall Length (A) mm - 120
B (mm) - 32.2
Thickness (C) mm - 56
D (mm) - 19
E (mm) - 8.05
Notes :
UN2 - UNISPHERE II

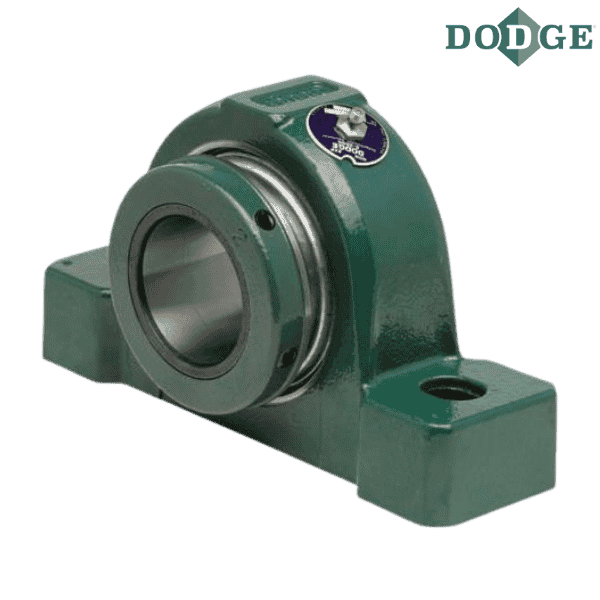

** Images are for representation purposes only
