Description
Brand - DODGE
Item Number - 421365 DODGE - BRG-UN2-055
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22211
Shaft Size (mm) - 55
Part Name - BRG-UN2-055
Approximate Weight (kg) - 1.06

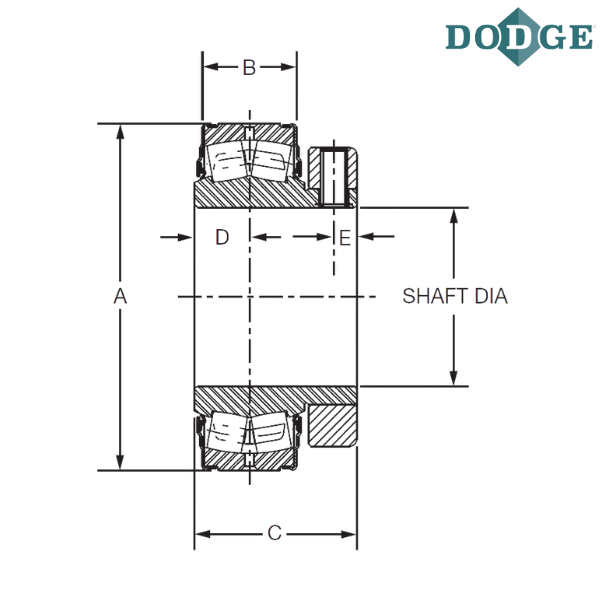

Overall Length (A) mm - 100
B (mm) - 26
Thickness (C) mm - 51
D (mm) - 16.4
E (mm) - 8.05
Notes :
UN2 - UNISPHERE II

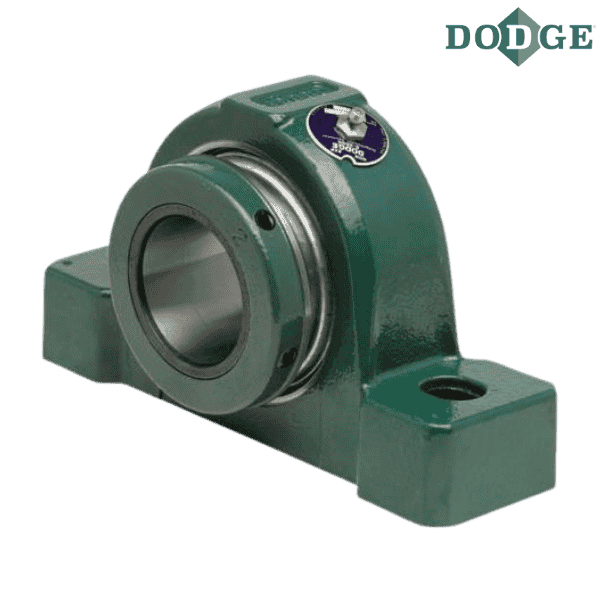

** Images are for representation purposes only
