Description
Brand - DODGE
Item Number - 421363 DODGE - BRG-UN2-045
Category - UNISPHERE II Bearing Insert With Seal - Metric
Bearing - 22209
Shaft Size (mm) - 45
Part Name - BRG-UN2-045
Approximate Weight (kg) - 0.7

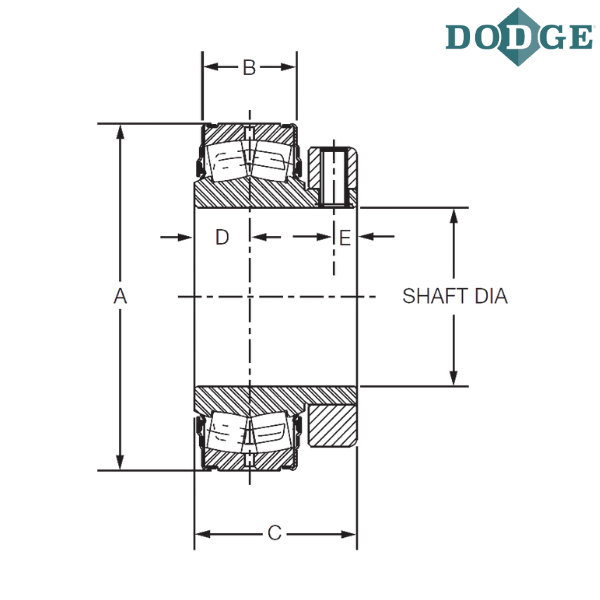

Overall Length (A) mm - 85
B (mm) - 24
Thickness (C) mm - 48
D (mm) - 14.7
E (mm) - 7.26
Notes :
UN2 - UNISPHERE II

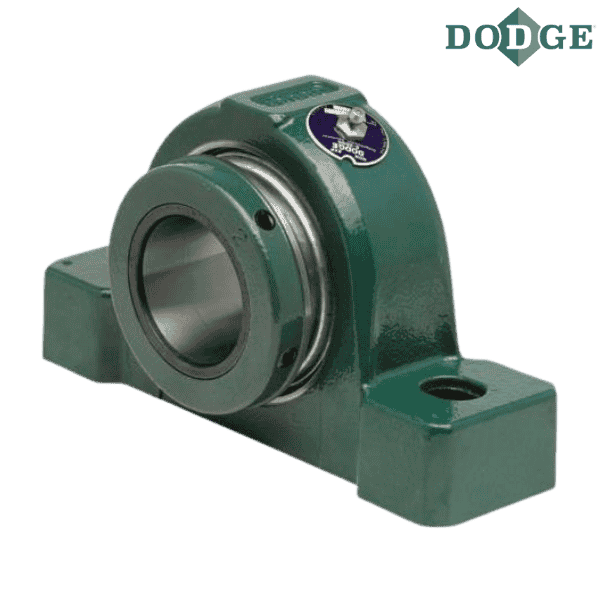

** Images are for representation purposes only
