Description
Brand - DODGE
Item Number - 421292 DODGE - BRG23260K.C3
Category - USDAF 23000, 23100, 23200 Spherical Roller Bearings
Description - BRG23260K.C3
Housing - 3260
Bearing Number - 23260K
Approximate Weight (kg) - 405

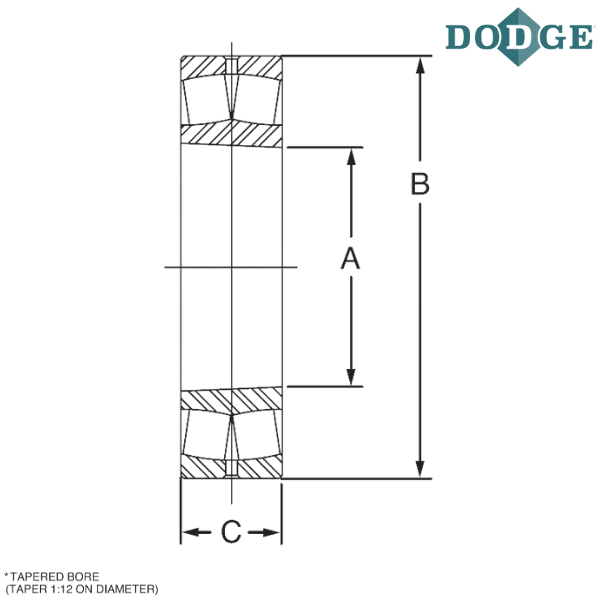

A (inch) - 11.811
A (mm) - 300
Outer Diameter (B) inch - 21.2598
Outer Diameter (B) mm - 540
C (inch) - 7.559
C (mm) - 192
Notes :
BRG - Roller Bearing
C3 - Bearing clearance
** Images are for representation purposes only
