Description
Brand - DODGE
Item Number - 421291 DODGE - BRG23256K.C3
Category - USDAF 23000, 23100, 23200 Spherical Roller Bearings
Description - BRG23256K.C3
Housing - 3256
Bearing Number - 23256K
Approximate Weight (kg) - 311

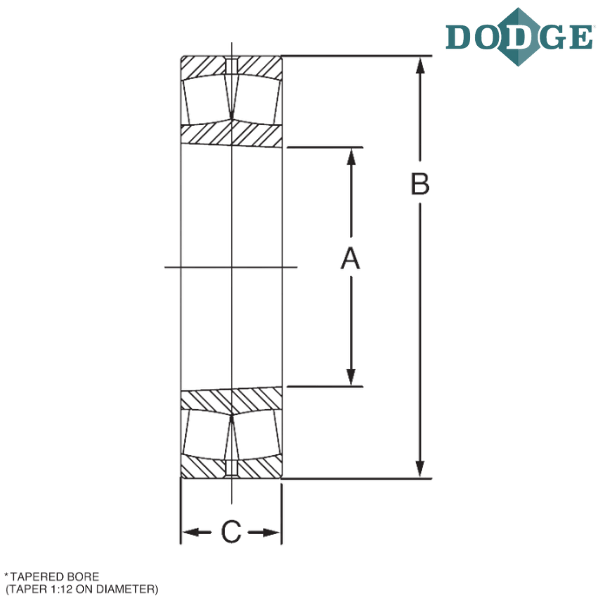

A (inch) - 11.0236
A (mm) - 280
Outer Diameter (B) inch - 19.685
Outer Diameter (B) mm - 500
C (inch) - 6.9291
C (mm) - 176
Notes :
BRG - Roller Bearing
C3 - Bearing clearance
** Images are for representation purposes only
