Description
Brand - DODGE
Item Number - 421289 DODGE - BRG23176K.C3
Category - USDAF 23000, 23100, 23200 Spherical Roller Bearings
Description - BRG23176K.C3
Housing - 3176
Bearing Number - 23176K
Approximate Weight (kg) - 487

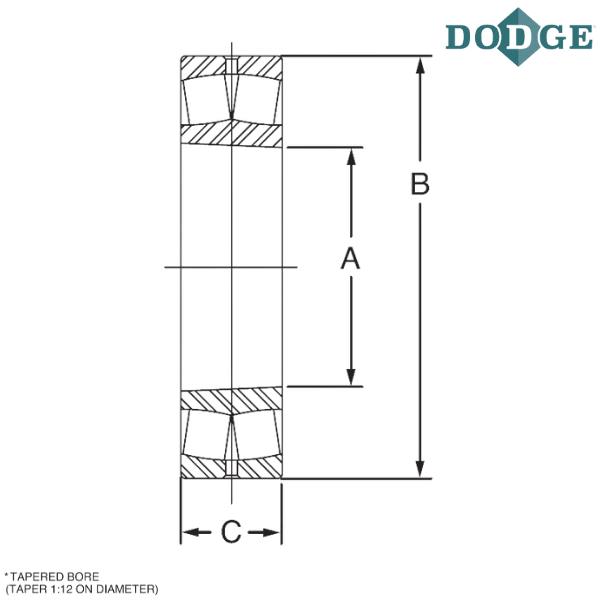

A (inch) - 14.9606
A (mm) - 380
Outer Diameter (B) inch - 24.4094
Outer Diameter (B) mm - 620
C (inch) - 7.6378
C (mm) - 194
Notes :
BRG - Roller Bearing
C3 - Bearing clearance
** Images are for representation purposes only
