Description
Brand - DODGE
Item Number - 421288 DODGE - BRG23172K.C3
Category - USDAF 23000, 23100, 23200 Spherical Roller Bearings
Description - BRG23172K.C3
Housing - 3172
Bearing Number - 23172K
Approximate Weight (kg) - 463

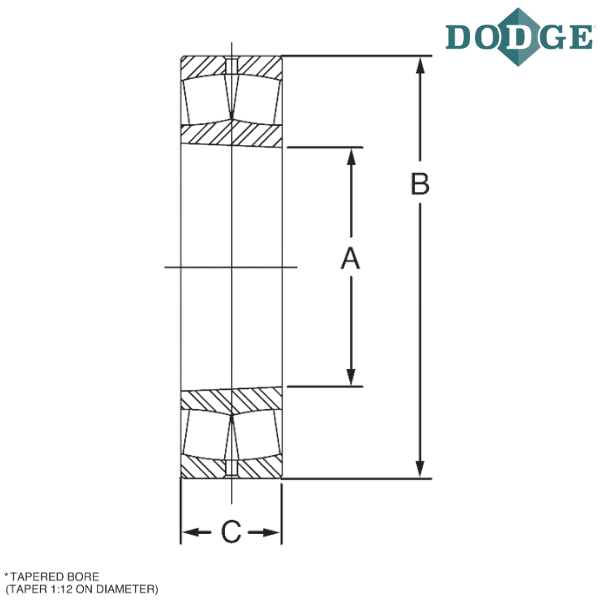

A (inch) - 14.1732
A (mm) - 360
Outer Diameter (B) inch - 23.622
Outer Diameter (B) mm - 600
C (inch) - 7.559
C (mm) - 192
Notes :
BRG - Roller Bearing
C3 - Bearing clearance

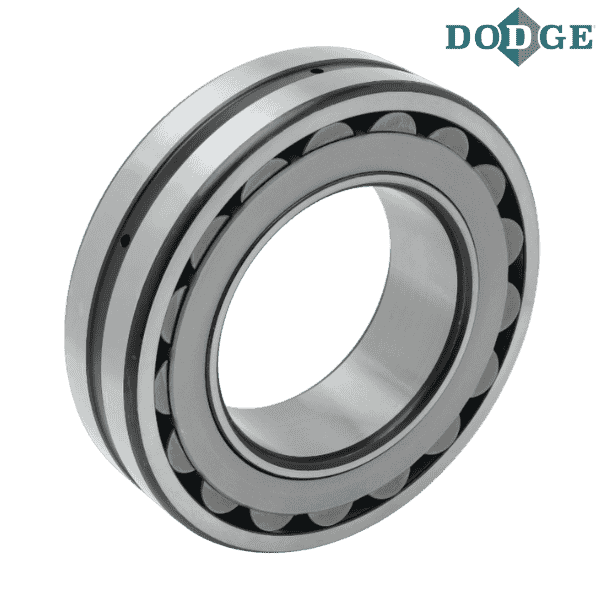

** Images are for representation purposes only
