Description
Brand - DODGE

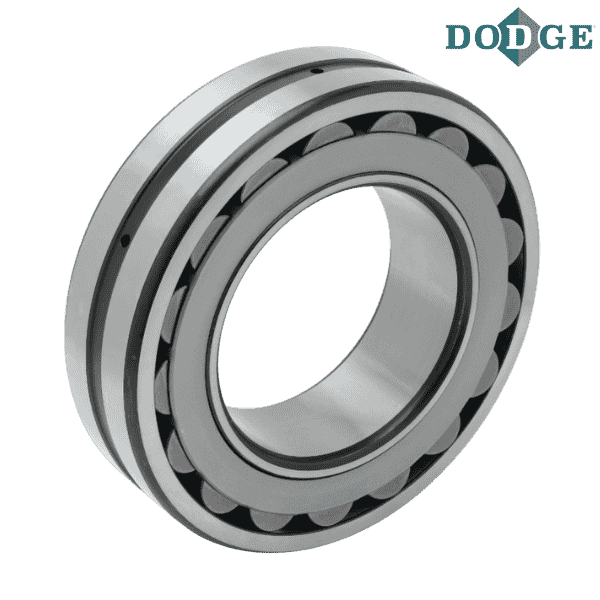

Item Number - 421287 DODGE - BRG23164K.C3
Category - USDAF 23000, 23100, 23200 Spherical Roller Bearings
Description - BRG23164K.C3
Housing - 3164
Bearing Number - 23164K
Approximate Weight (kg) - 350

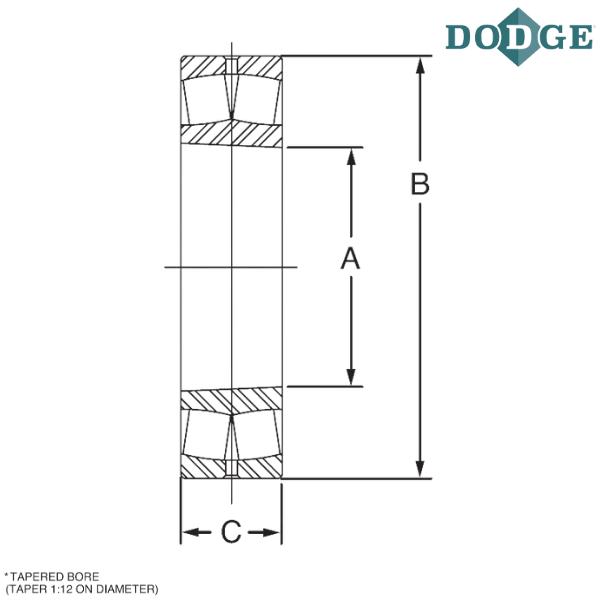

A (inch) - 12.5984
A (mm) - 320
Outer Diameter (B) inch - 21.2598
Outer Diameter (B) mm - 540
C (inch) - 6.9291
C (mm) - 176
Notes :
BRG - Roller Bearing
C3 - Bearing clearance
** Images are for representation purposes only
