Description
Brand - DODGE
Item Number - 421275 DODGE - BRG22232C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22232C3
Housing - 232
Bearing Number - 22232
Approximate Weight (lbs) - 47.8

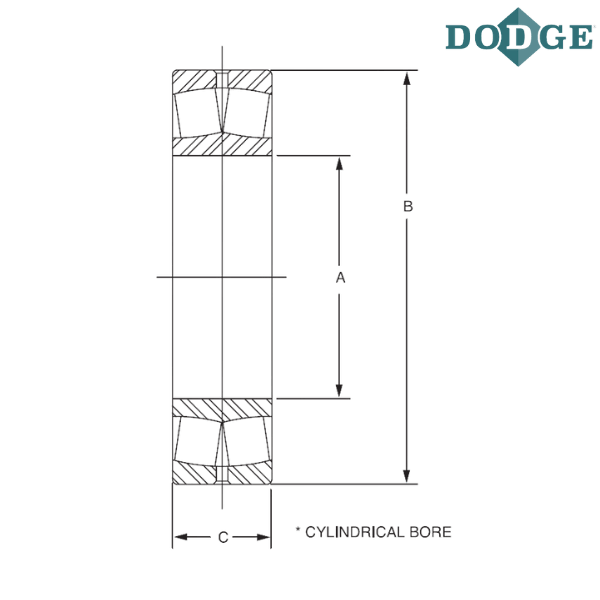

Bore Diameter (A) inch - 6.2992
Bore Diameter (A) mm - 160
Outer Diameter (B) inch - 11.4173
Outer Diameter (B) mm - 290
C (inch) - 3.1496
C (mm) - 80
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance
** Images are for representation purposes only
