Description
Brand - DODGE
Item Number - 421274 DODGE - BRG22230C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22230C3
Housing - 230
Bearing Number - 22230
Approximate Weight (lbs) - 35.5

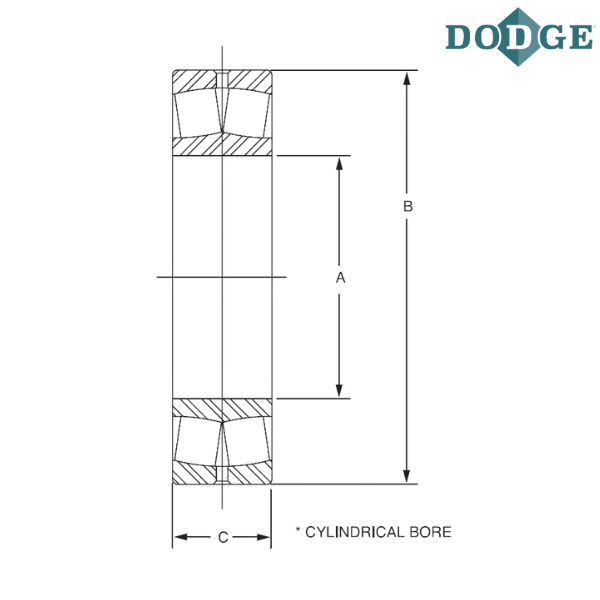

Bore Diameter (A) inch - 5.9055
Bore Diameter (A) mm - 150
Outer Diameter (B) inch - 10.6299
Outer Diameter (B) mm - 270
C (inch) - 2.874
C (mm) - 73
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance
** Images are for representation purposes only
