Description
Brand - DODGE
Item Number - 421272 DODGE - BRG22226C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22226C3
Housing - 226
Bearing Number - 22226
Approximate Weight (lbs) - 23.1

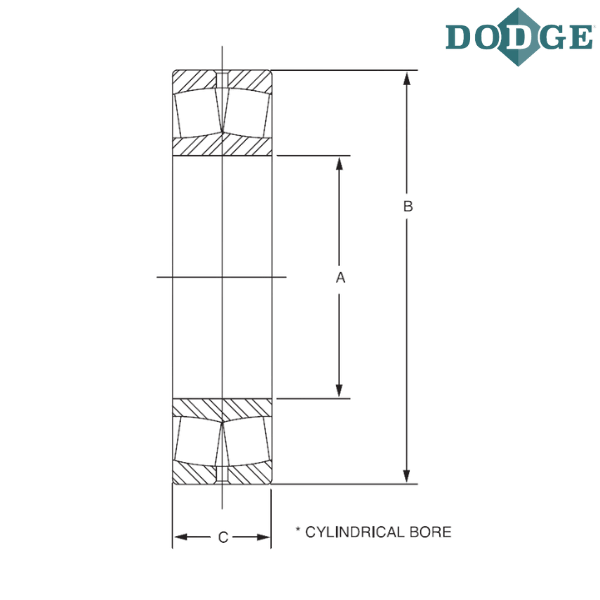

Bore Diameter (A) inch - 5.1181
Bore Diameter (A) mm - 130
Outer Diameter (B) inch - 9.0551
Outer Diameter (B) mm - 230
C (inch) - 2.5197
C (mm) - 64
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance
** Images are for representation purposes only
