Description
Brand - DODGE
Item Number - 421271 DODGE - BRG22224C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22224C3
Housing - 224
Bearing Number - 22224
Approximate Weight (lbs) - 18.7

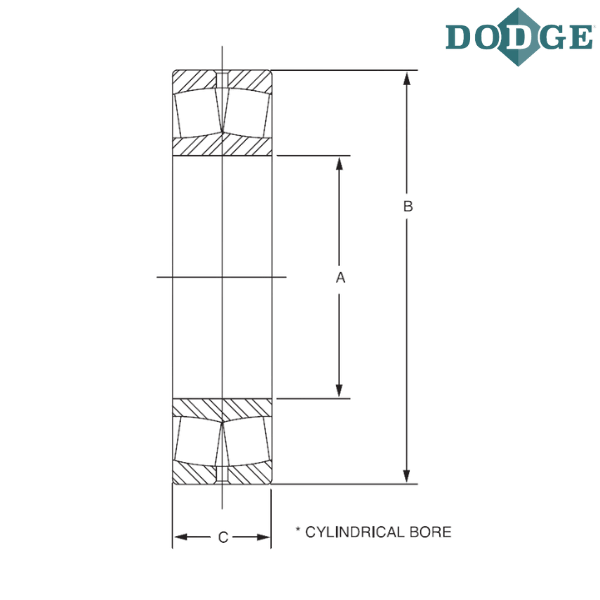

Bore Diameter (A) inch - 4.7244
Bore Diameter (A) mm - 120
Outer Diameter (B) inch - 8.4646
Outer Diameter (B) mm - 215
C (inch) - 2.2835
C (mm) - 58
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance
** Images are for representation purposes only
