Description
Brand - DODGE
Item Number - 421269 DODGE - BRG22220C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22220C3
Housing - 220
Bearing Number - 22220
Approximate Weight (lbs) - 10.4

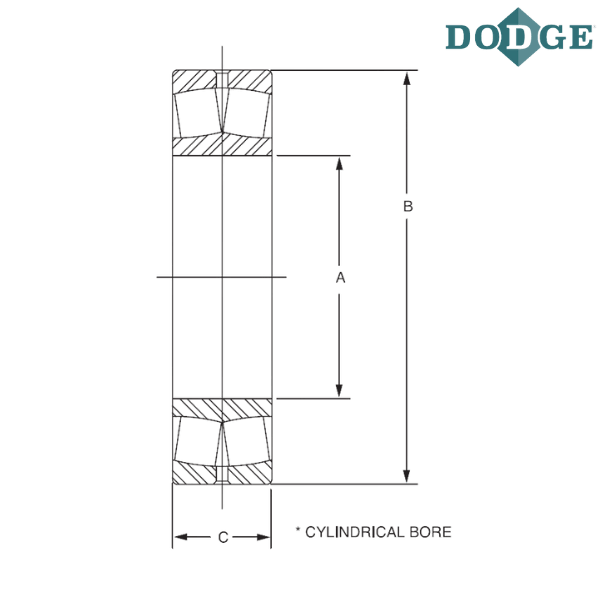

Bore Diameter (A) inch - 3.937
Bore Diameter (A) mm - 100
Outer Diameter (B) inch - 7.0866
Outer Diameter (B) mm - 180
C (inch) - 1.811
C (mm) - 46
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance
** Images are for representation purposes only
