Description
Brand - DODGE
Item Number - 421268 DODGE - BRG22218C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22218C3
Housing - 218
Bearing Number - 22218
Approximate Weight (lbs) - 7.1

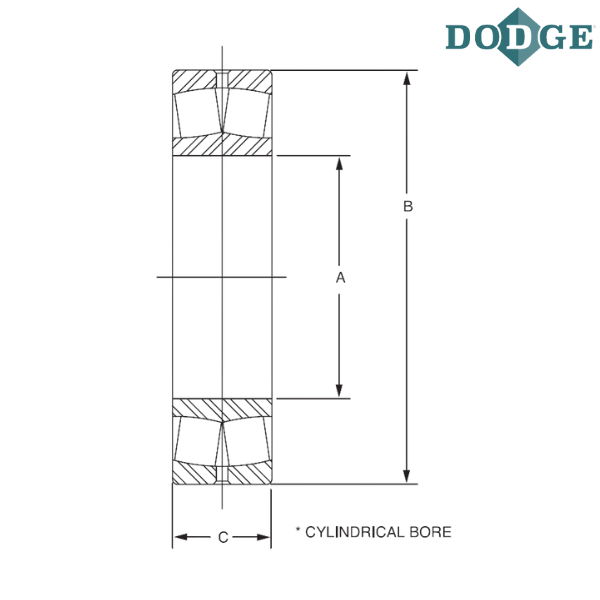

Bore Diameter (A) inch - 3.5433
Bore Diameter (A) mm - 90
Outer Diameter (B) inch - 6.2992
Outer Diameter (B) mm - 160
C (inch) - 1.5748
C (mm) - 40
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance

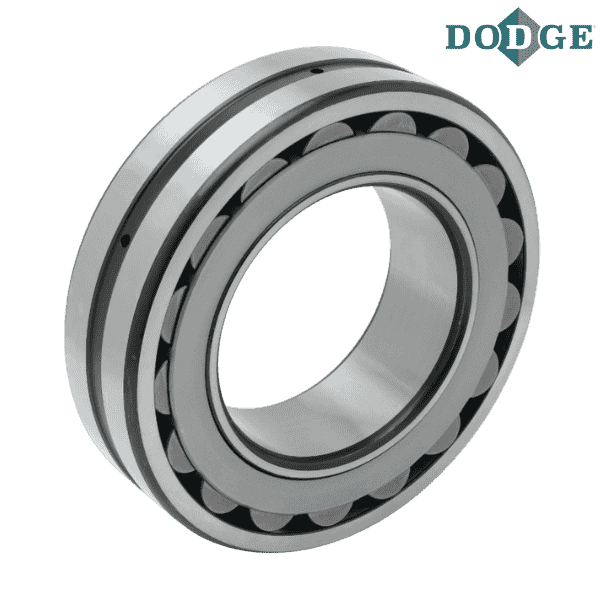

** Images are for representation purposes only
