Description
Brand - DODGE
Item Number - 421267 DODGE - BRG22217C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22217C3
Housing - 217
Bearing Number - 22217
Approximate Weight (lbs) - 5.5

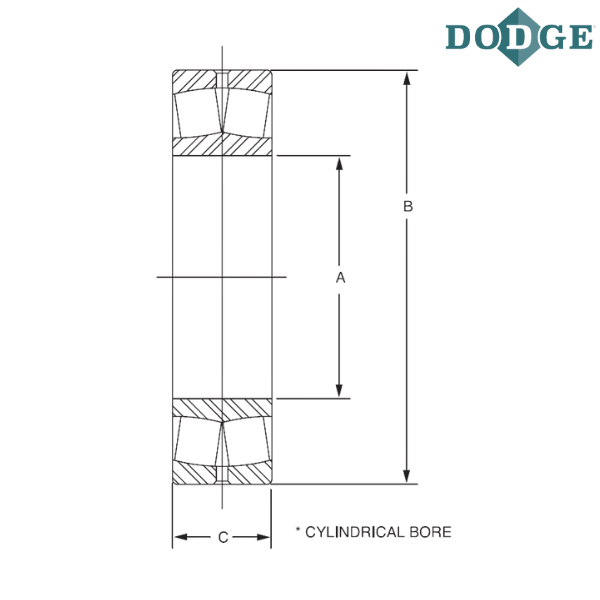

Bore Diameter (A) inch - 3.3465
Bore Diameter (A) mm - 85
Outer Diameter (B) inch - 5.9055
Outer Diameter (B) mm - 150
C (inch) - 1.4173
C (mm) - 36
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance

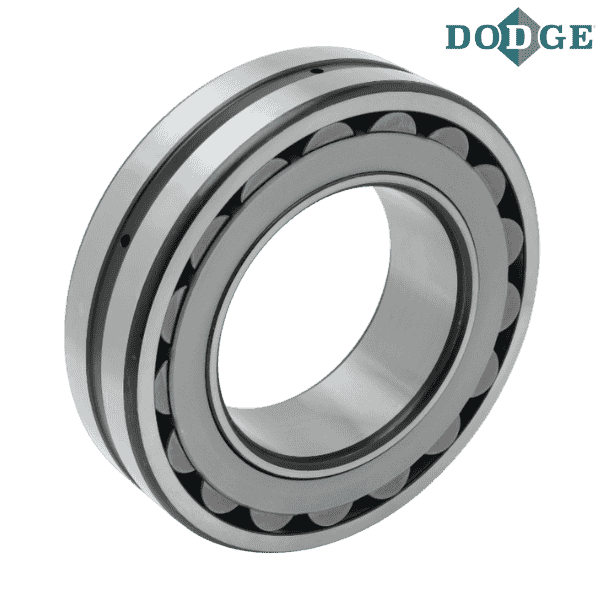

** Images are for representation purposes only
