Description
Brand - DODGE
Item Number - 421266 DODGE - BRG22216C3
Category - USAF 22200 Spherical Roller Bearings
Description - BRG22216C3
Housing - 216
Bearing Number - 22216
Approximate Weight (lbs) - 4.4

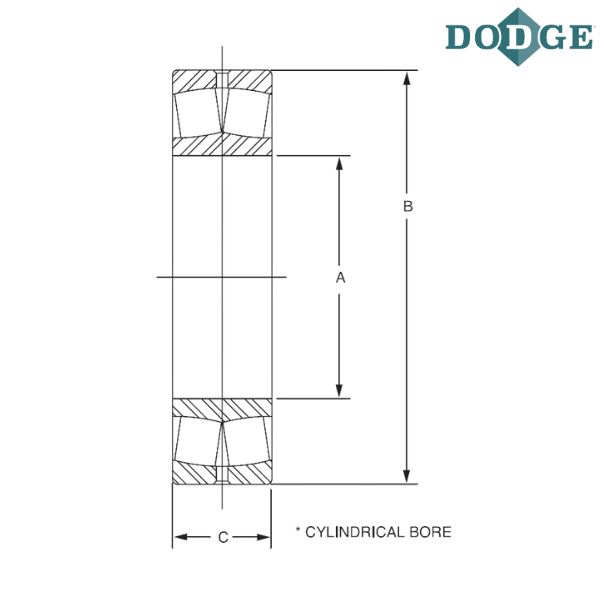

Bore Diameter (A) inch - 3.1496
Bore Diameter (A) mm - 80
Outer Diameter (B) inch - 5.5118
Outer Diameter (B) mm - 140
C (inch) - 1.2992
C (mm) - 33
Notes :
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance

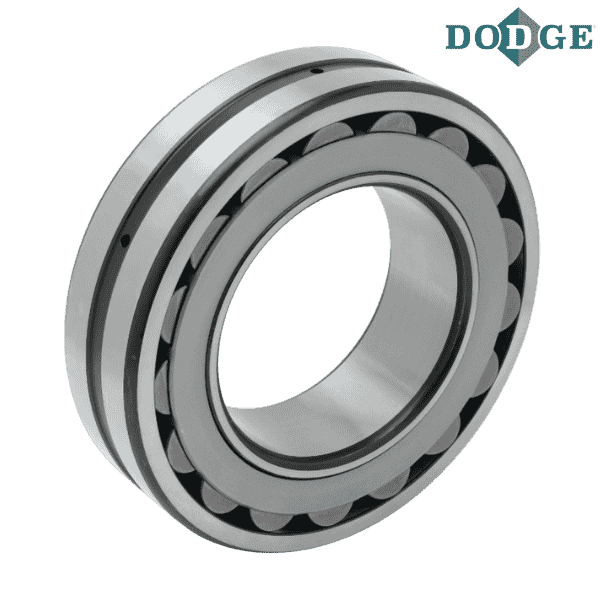

** Images are for representation purposes only
