Description
Brand - DODGE
Item Number - 421254 DODGE - BRG-UN2-215
Category - UNISPHERE II Bearing Insert With Seal - Inch
Bearing - 22215
Shaft Size (inch) - 2.9375
Part Name - BRG-UN2-215
Approximate Weight (lbs) - 4.8

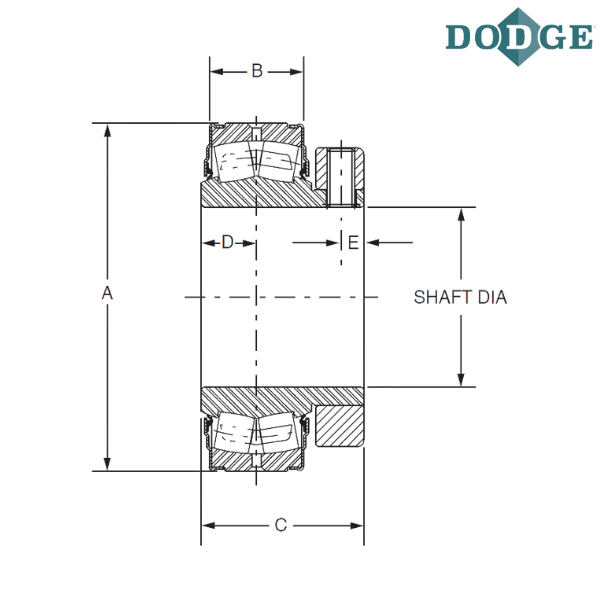

Overall Length (A) inch - 5.1181
B (inch) - 1.27
Thickness (C) inch - 2.45
D (inch) - 0.8
E (inch) - 0.44
Notes :
UN2 - UNISPHERE II

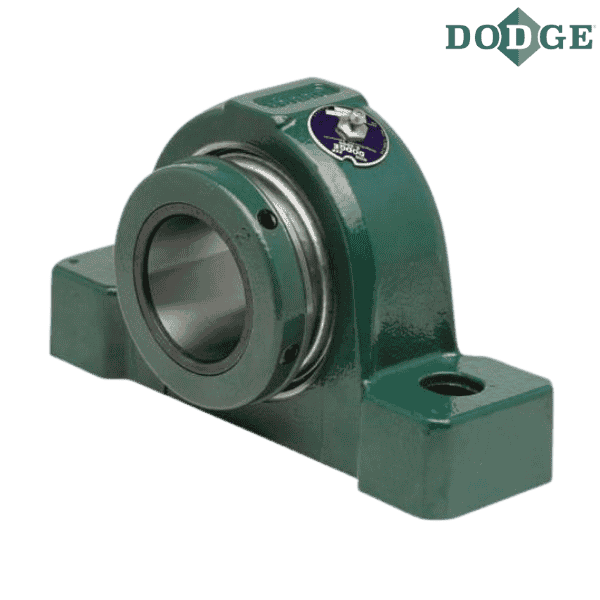

** Images are for representation purposes only
