Description
Brand - DODGE

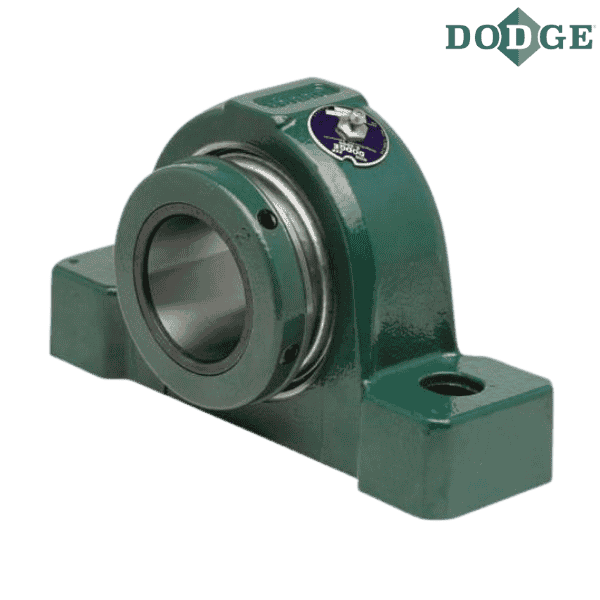

Item Number - 421252 DODGE - BRG-UN2-211
Category - UNISPHERE II Bearing Insert With Seal - Inch
Bearing - 22215
Shaft Size (inch) - 2.6875
Part Name - BRG-UN2-211
Approximate Weight (lbs) - 5.6

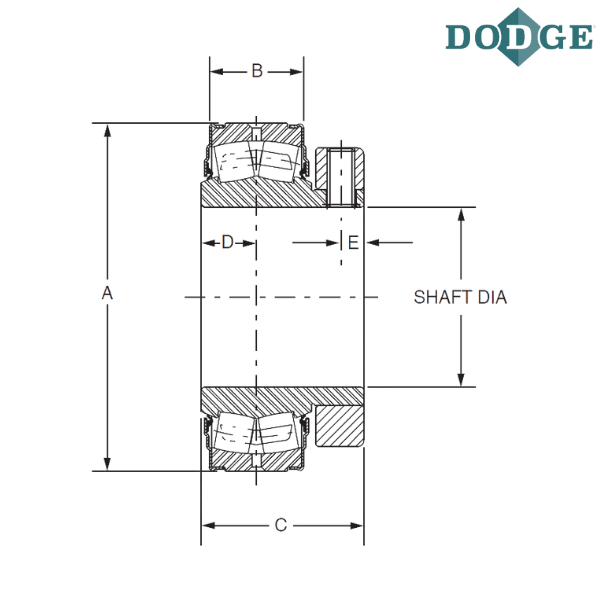

Overall Length (A) inch - 5.1181
B (inch) - 1.27
Thickness (C) inch - 2.45
D (inch) - 0.8
E (inch) - 0.44
Notes :
UN2 - UNISPHERE II
** Images are for representation purposes only
