Description
Brand - DODGE
Item Number - 421249 DODGE - BRG-UN2-203
Category - UNISPHERE II Bearing Insert With Seal - Inch
Bearing - 22211
Shaft Size (inch) - 2.1875
Part Name - BRG-UN2-203
Approximate Weight (lbs) - 2.3

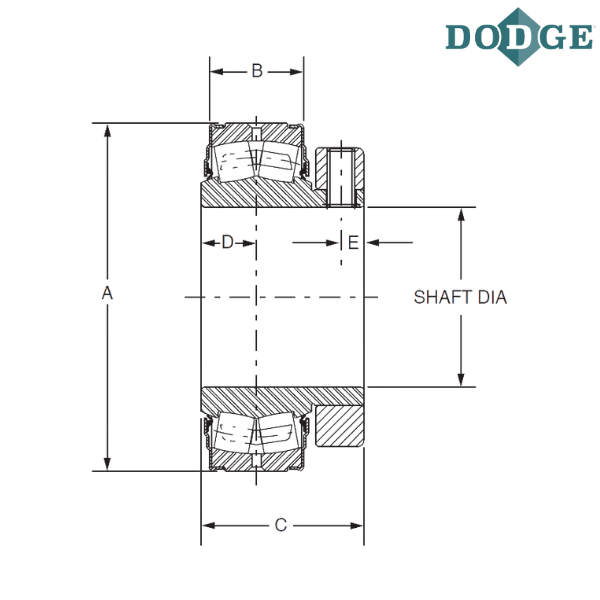

Overall Length (A) inch - 3.937
B (inch) - 1.03
Thickness (C) inch - 2
D (inch) - 0.64
E (inch) - 0.32
Notes :
UN2 - UNISPHERE II

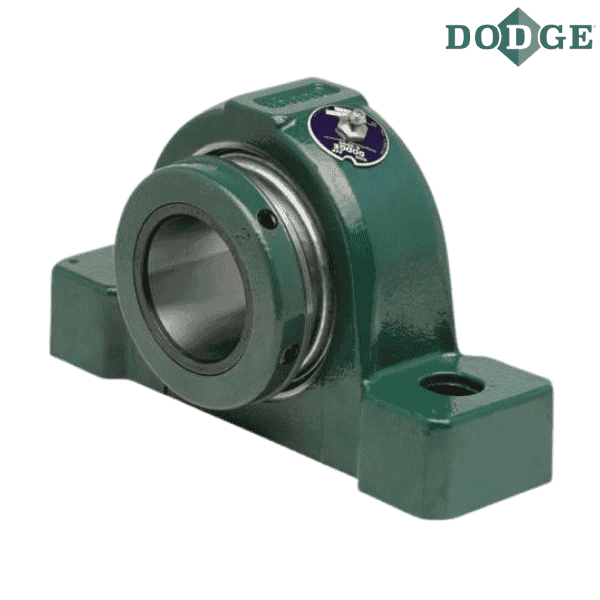

** Images are for representation purposes only
