Description
Brand - DODGE
Item Number - 421245 DODGE - BRG-UN2-111
Category - UNISPHERE II Bearing Insert With Seal - Inch
Bearing - 22209
Shaft Size (inch) - 1.6875
Part Name - BRG-UN2-111
Approximate Weight (lbs) - 1.6

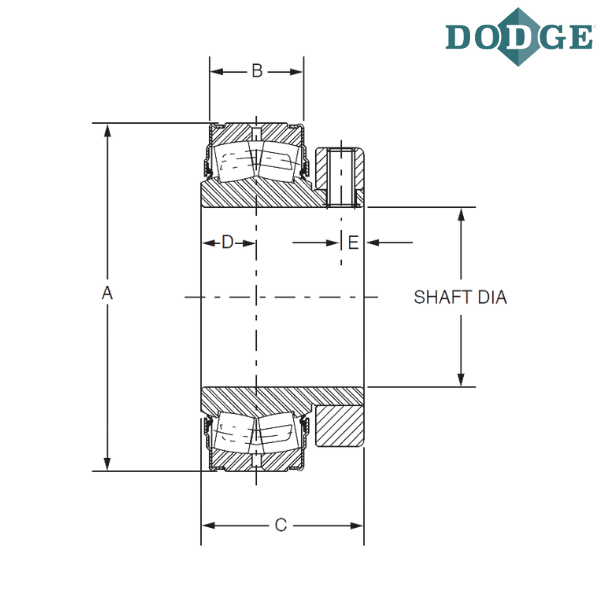

Overall Length (A) inch - 3.3465
B (inch) - 0.95
Thickness (C) inch - 1.91
D (inch) - 0.58
E (inch) - 0.32
Notes :
UN2 - UNISPHERE II

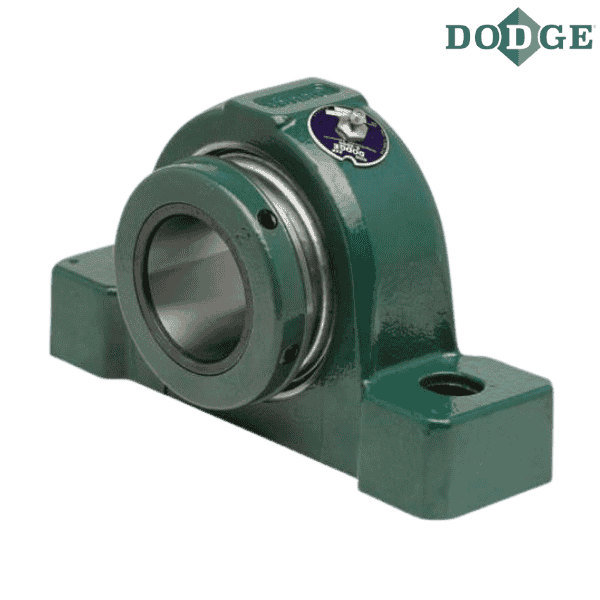

** Images are for representation purposes only
