Description
Brand - FAG
Item Number - 4211-B-TVH FAG
Category - Deep Groove Ball Bearing Double Row
Bore Diameter (d) mm - 55
Outside Diameter (D) mm - 100
Width (B) mm - 25
Basic Dynamic Load Rating (Cr) N - 43000
Basic Static Load Rating (C0r) N - 42500
Fatigue Load Limit, Radial (Cur) N - 2200
Limiting Speed (nG) min–1 - 5700
Calculation Factor (f0) - 15.4
Weight (m) Kg - 0.808
Minimum Chamfer Dimension (r min) mm - 1.5

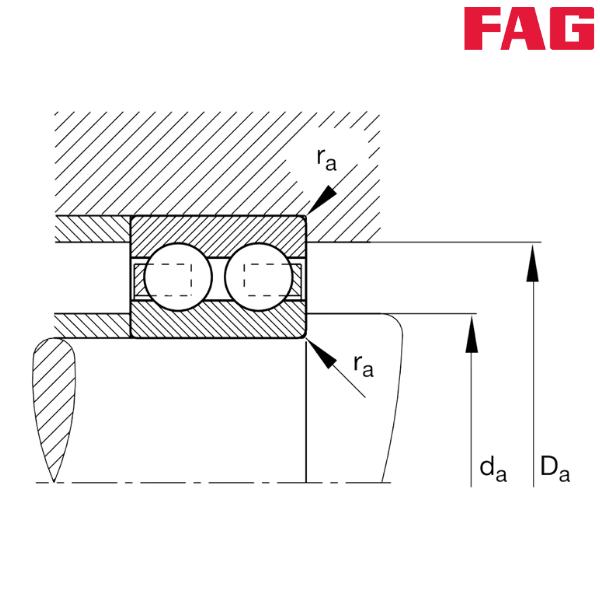

Shoulder Diameter Inner Ring (d1) mm - 71.4
Minimum Diameter Shaft Shoulder (da) mm - 64
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
B - Modified Internal Construction
** Images are for representation purposes only
