Description
Brand - FAG
Item Number - 4210-BB-TVH FAG
Category - Deep Groove Ball Bearing Double Row
Bore Diameter (d) mm - 50
Outside Diameter (D) mm - 90
Width (B) mm - 23
Basic Dynamic Load Rating (Cr) N - 46500
Basic Static Load Rating (C0r) N - 42000
Fatigue Load Limit, Radial (Cur) N - 2200
Limiting Speed (nG) min–1 - 6300
Calculation Factor (f0) - 15.2
Weight (m) Kg - 0.68

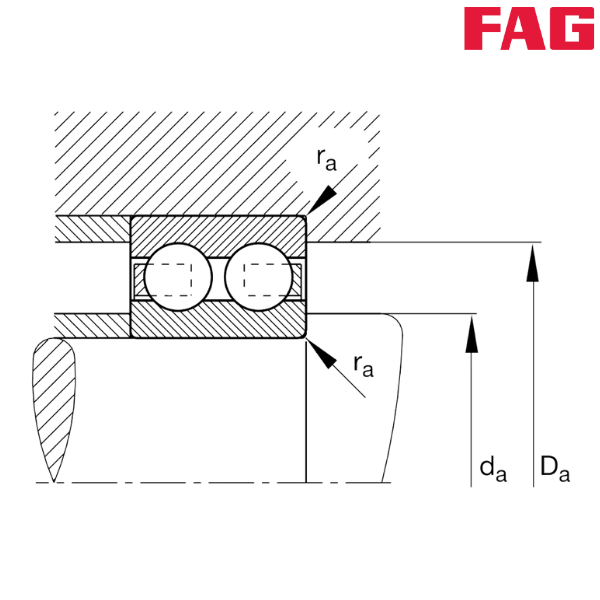

Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Inner Ring (d1) mm - 62.8
Minimum Diameter Shaft Shoulder (da) mm - 57
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
BB - Modified Internal Construction
** Images are for representation purposes only
