Description
Brand - DODGE
Item Number - 389940 DODGE - INS-VSC-111
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Bearing Inserts)
Series - 209
Shaft Size (inch) - 1.6875
Description - INS-VSC-111
Weight (lbs) - 1.41

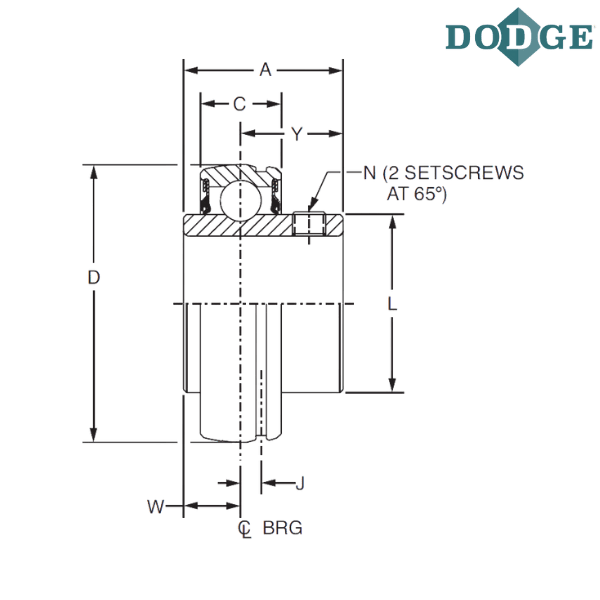

Overall Width (A) inch - 1.94
C (inch) - 0.87
Overall Length (D) inch - 3.3465
J (inch) - 0.25
L (inch) - 2.22
N (inch) - 5/16-24
W (inch) - 0.75
Y (inch) - 1.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert

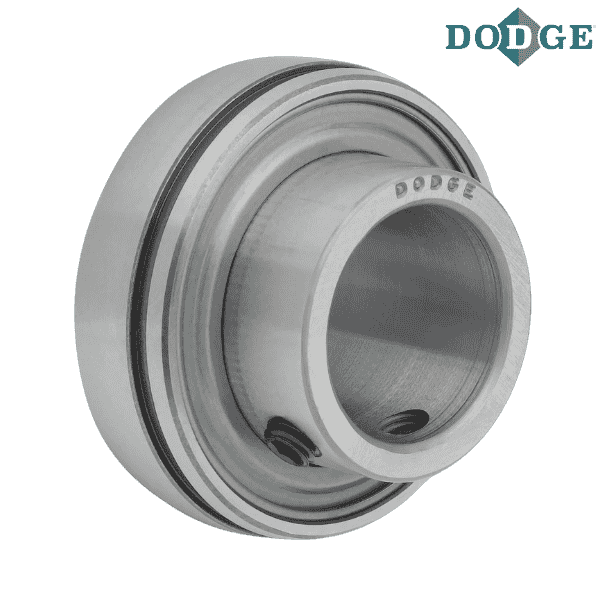

** Images are for representation purposes only
