Description
Brand - DODGE

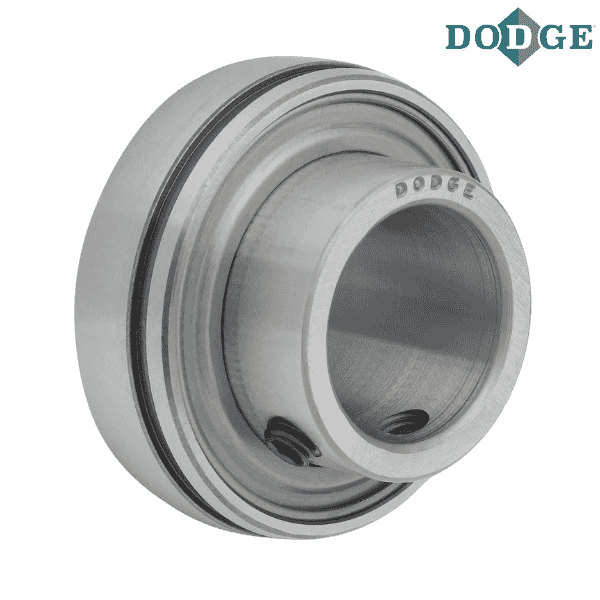

Item Number - 389924 DODGE - INS-VSC-010
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Bearing Inserts)
Series - 203
Shaft Size (inch) - 0.625
Description - INS-VSC-010
Weight (lbs) - 0.21

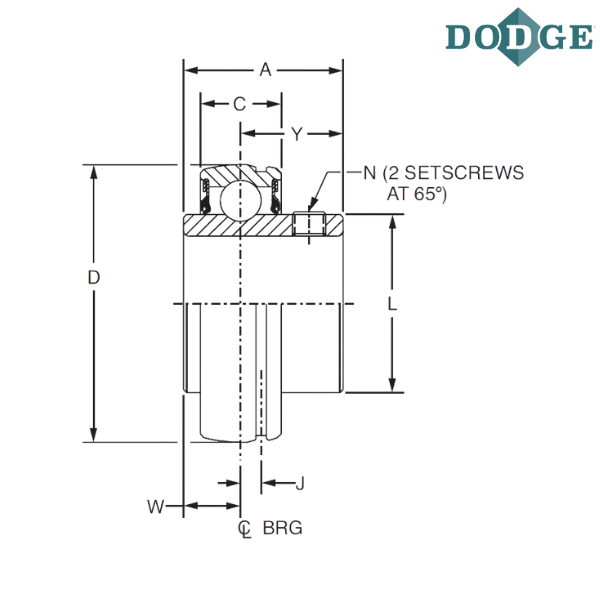

Overall Width (A) inch - 1
C (inch) - 0.51
Overall Length (D) inch - 1.5748
J (inch) - 0.15
L (inch) - 0.96
N (inch) - 10-32
W (inch) - 0.36
Y (inch) - 0.64
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
** Images are for representation purposes only
