Description
Brand - SKF

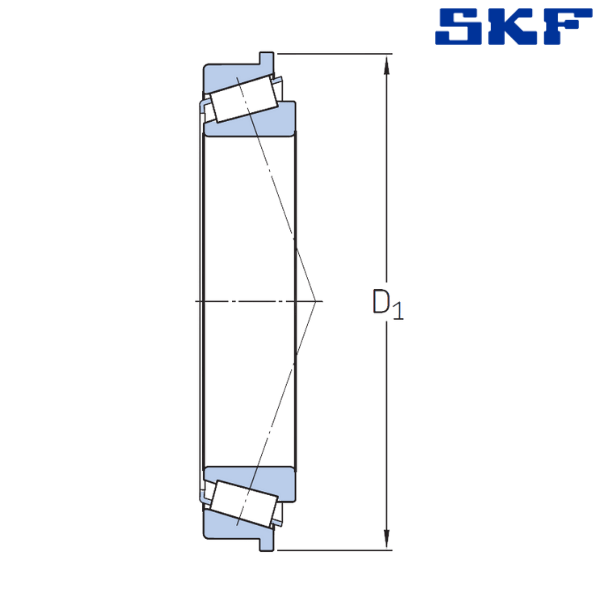

Item Number - 38880/38820/VE141 SKF
Category - Gearbox, Tapered roller bearings
Bore Diameter (d) mm - 263.525
Outer Diameter (D) mm - 325.438
Total Width (T) mm - 28.575
Width of Inner Ring (B) mm - 28.575
Width of Outer Ring (C) mm - 25.4
Dynamic Load Rating (C) kN - 220
Static Load Rating (C0) kN - 550
Limiting Speed (r/min) - 1700
Weight (kg) - 5.28
Limiting Value (e) - 0.37
Calculation Factor (Y) - 1.6
Calculation Factor (Y0) - 0.9
Designation Prefixes and Suffixes:
VE - This Suffix Followed by Three or Four Digit Numbers Refer to Special Executions.
** Images are for representation purposes only
