Description
Brand - FAG
Item Number - 3816-B-2RS-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 80
Outside Diameter (D) mm - 100
Width (B) mm - 15
Basic Dynamic Load Rating, Radial (Cr) N - 19200
Basic Static Load Rating, Radial (C0r) N - 24800
Fatigue Load Limit, Radial (Cur) N - 1430
Limiting Speed (nG) min–1 - 3100
Weight (m) kg - 0.23
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 95.3
Caliber Diamter Inner Ring (d2) mm - 85.5
Distance Between the Apexes of the Pressure Cones (a) mm - 47.8
Nominal Contact Angle (α)° - 25

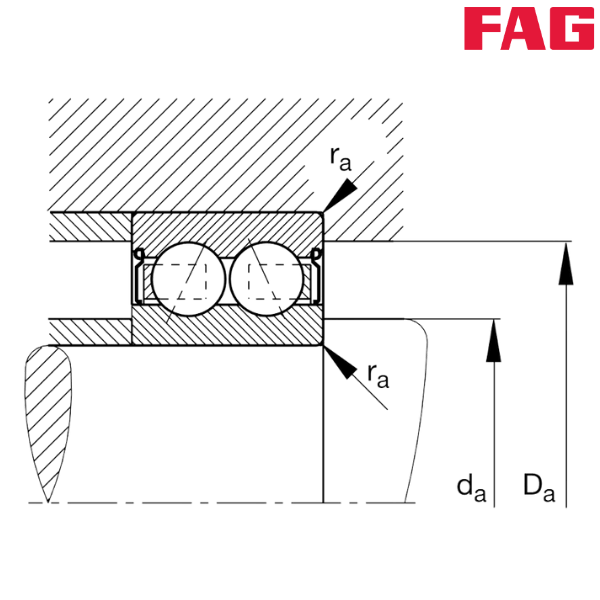

Minimum Diameter Shaft Shoulder (da) mm - 83.2
Maximum Diameter of Housing Shoulder (Da) mm - 96.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
2RS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
