Description
Brand - ZEN
Item Number - 3814-2RS ZEN
Category - Double Row Thin Section

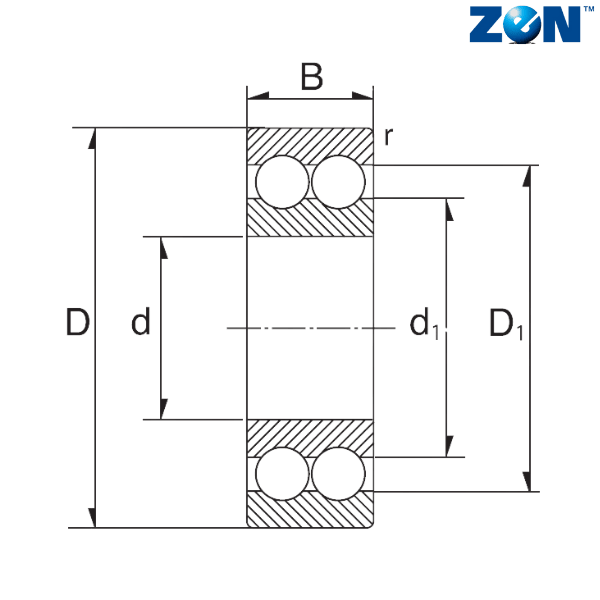

Inner Diameter (d) mm - 70
Outer Diameter (D) mm - 90
Width (B) mm - 15
Dynamic Load Rating (N) - 18800
Static Load Rating (N) - 23200
Limiting Speed - 3.5
Weight (kg) - 0.205
Radial Play - 0.012 - 0.036
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

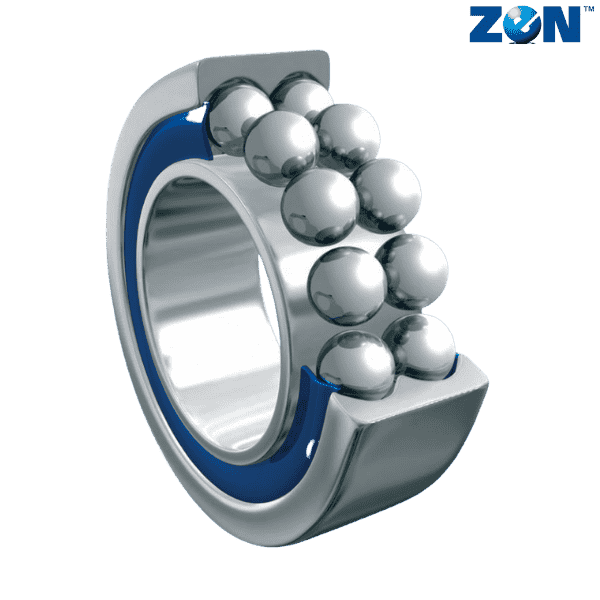

** Images are for representation purposes only
