Description
Brand - ZEN
Item Number - 3810-B-2RS ZEN
Category - Double Row Thin Section
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 65
Width (B) mm - 12
Dynamic Load Rating (N) - 8500
Static Load Rating (N) - 10200
Limiting Speed - 4.8
Weight (kg) - 0.093
Radial Play - 0.006 - 0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

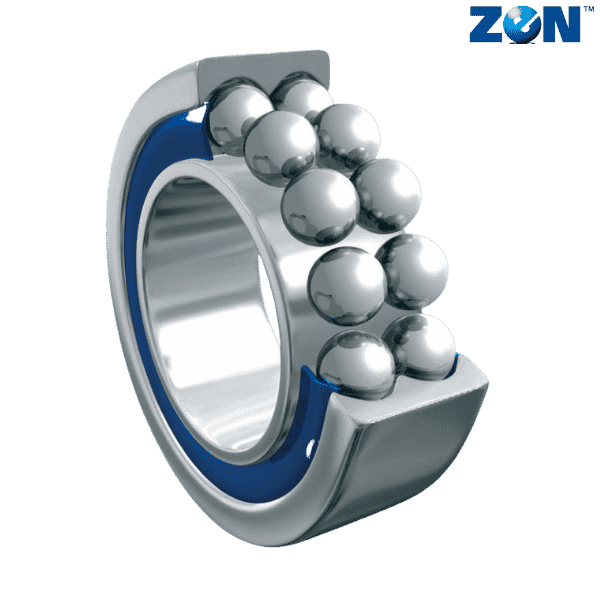

** Images are for representation purposes only
