Description
Brand - ZEN
Item Number - 3807-B ZEN
Category - Double Row Thin Section

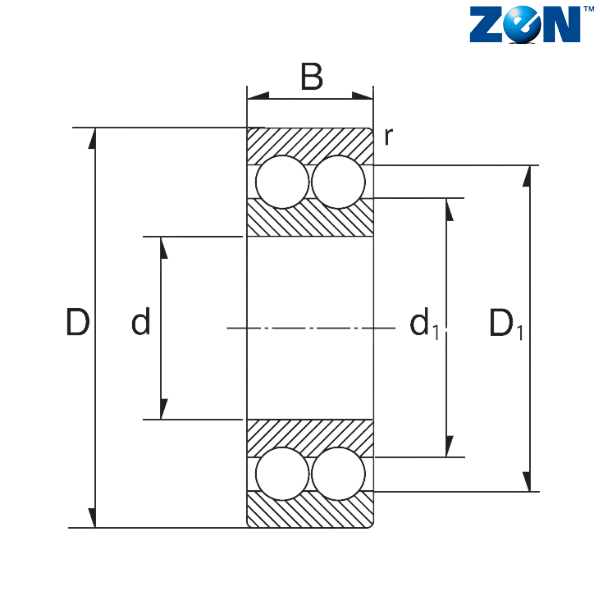

Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 47
Width (B) mm - 10
Dynamic Load Rating (N) - 6700
Static Load Rating (N) - 7000
Limiting Speed - 6
Weight (kg) - 0.037
Radial Play - 0.006 - 0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
