Description
Brand - ZEN
Item Number - 3805-B-2Z ZEN
Category - Double Row Thin Section

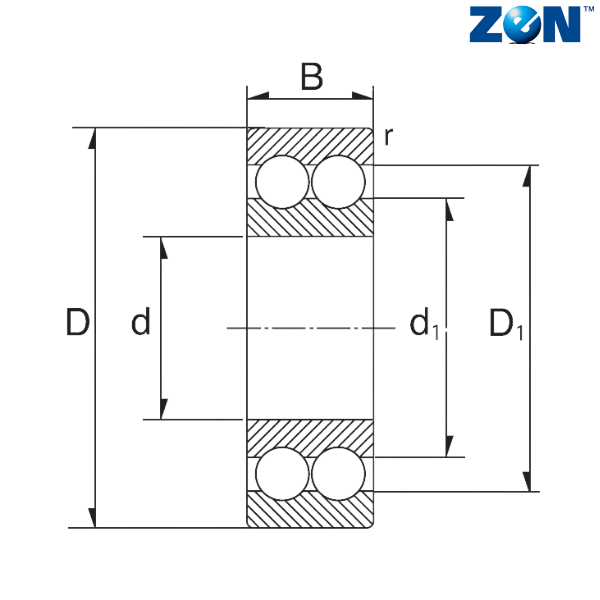

Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 37
Width (B) mm - 10
Dynamic Load Rating (N) - 6000
Static Load Rating (N) - 5600
Limiting Speed - 8.5
Weight (kg) - 0.025
Radial Play - 0.005 - 0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2Z - Metal Shields

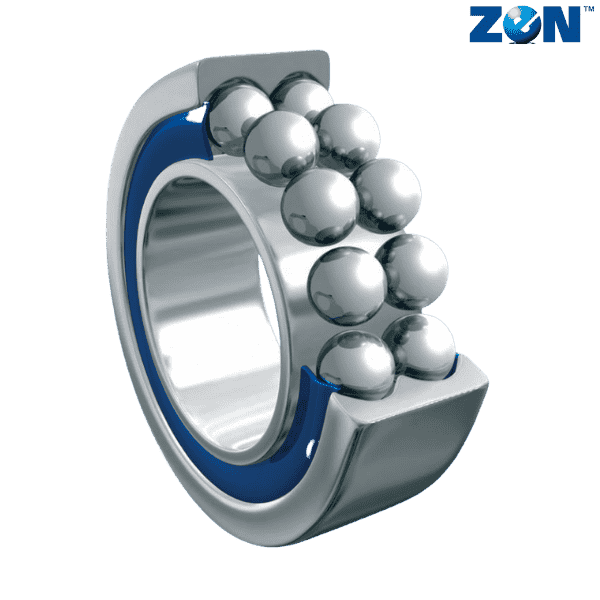

** Images are for representation purposes only
