Description
Brand - ZEN
Item Number - 3804-B-2Z ZEN

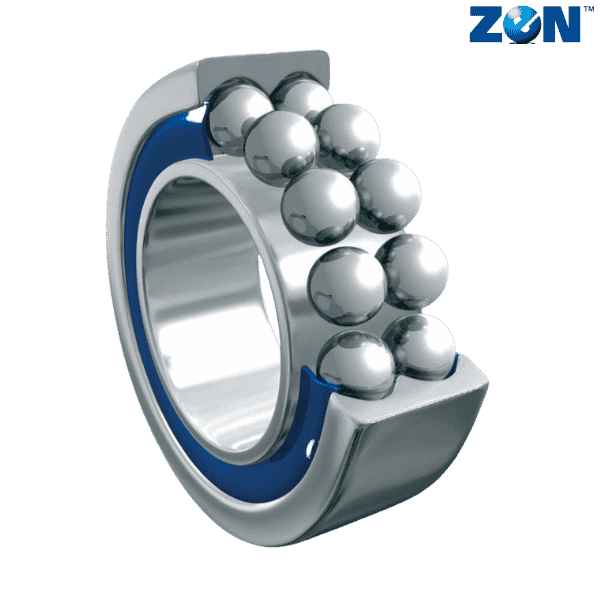

Category - Double Row Thin Section

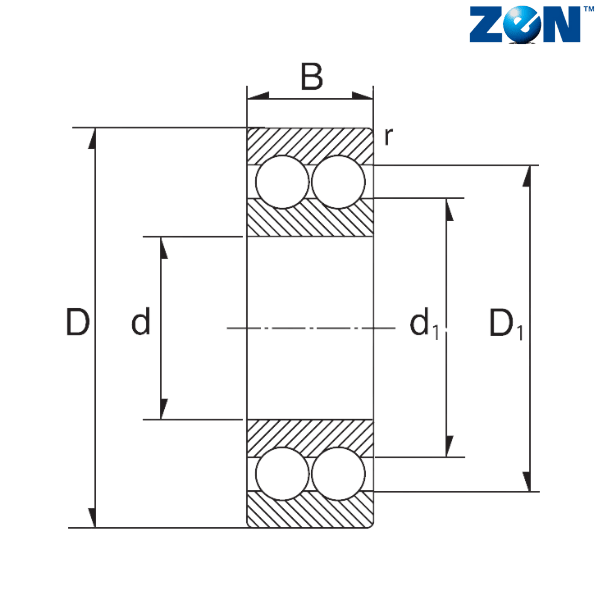

Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 32
Width (B) mm - 10
Dynamic Load Rating (N) - 5800
Static Load Rating (N) - 4850
Limiting Speed - 10
Weight (kg) - 0.02
Radial Play - 0.005 - 0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2Z - Metal Shields
** Images are for representation purposes only
