Description
Brand - ZEN
Item Number - 3803-B-2RS ZEN
Category - Double Row Thin Section

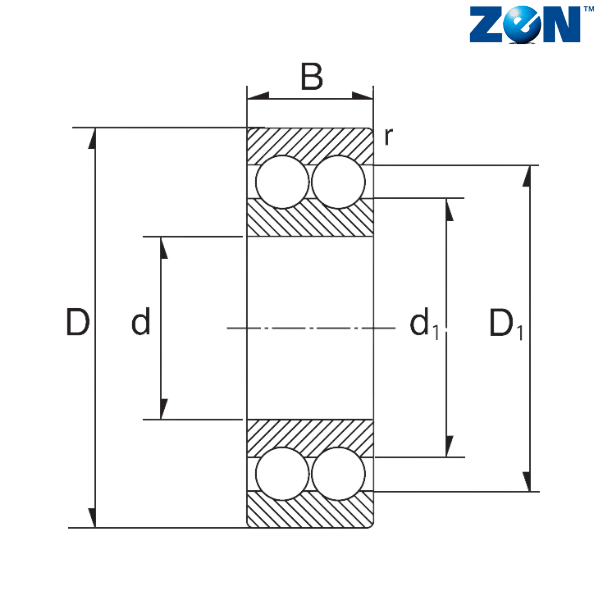

Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 26
Width (B) mm - 7
Dynamic Load Rating (N) - 2480
Static Load Rating (N) - 2080
Limiting Speed - 14
Weight (kg) - 0.015
Radial Play - 0.003 - 0.018
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

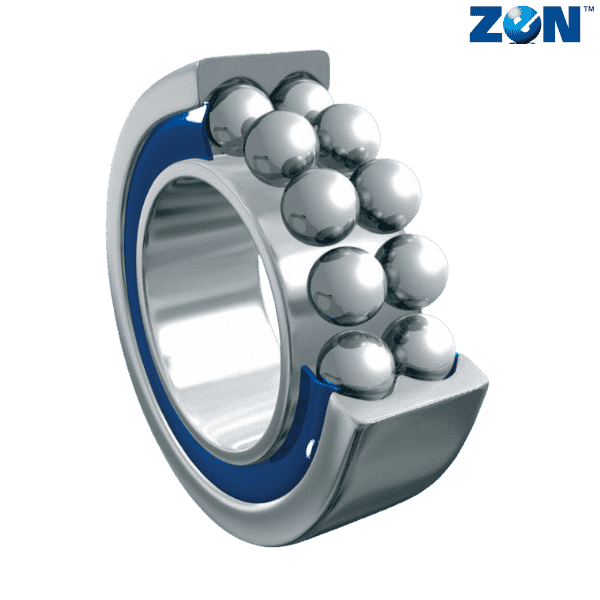

** Images are for representation purposes only
